Clutch Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clutch housing input shaft bearing retainer bolts and input shaft bearing retainer.

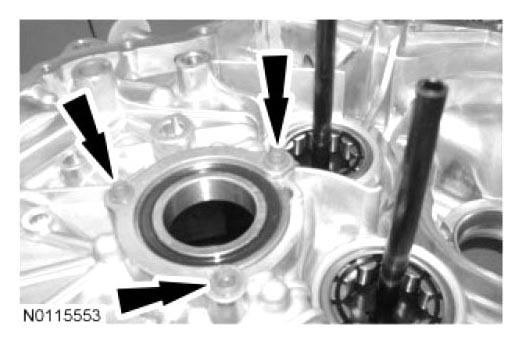

Fig 1: Locating Clutch Housing Input Shaft Bearing Retainer Bolts
Courtesy of FORD MOTOR CO.
By lightly tapping, remove and discard the clutch housing input shaft bearing.
Break the lube feed tubes off the clutch housing output shaft bearings and discard.

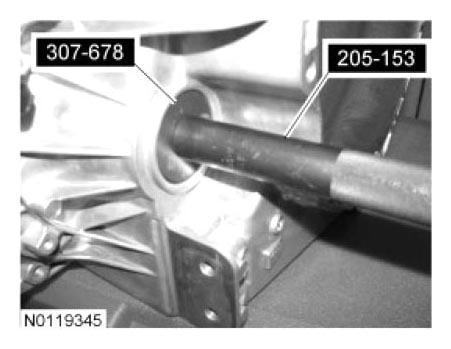

Fig 2: Locating Clutch Housing Input Shaft Bearing
Courtesy of FORD MOTOR CO.
Using the special tool, remove the clutch housing output shaft bearings.
NOTE: If the clutch housing output shaft bearing is broken, use the next size up special tool.

NOTE: Clutch housing output shaft bearing 1 shown in illustration, clutch housing output shaft bearing 2 similar.

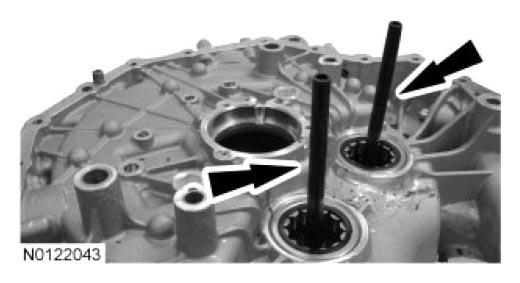

Fig 3: Removing Clutch Housing Output Shaft Bearings
Courtesy of FORD MOTOR CO.
Using the special tools, remove the clutch housing differential bearing race and shim.

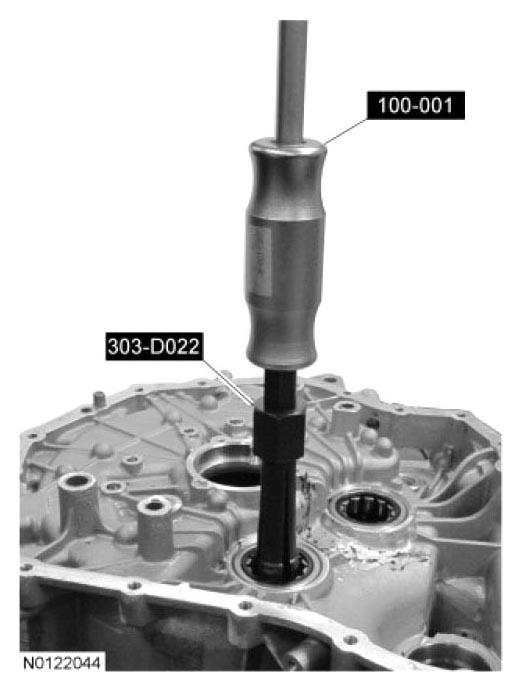

Fig 4: Removing Clutch Housing Differential Bearing Race And Shim
Courtesy of FORD MOTOR CO.
