Clutch Housing: Assembly

WARNING: This page is about a different variant/trim than selected.

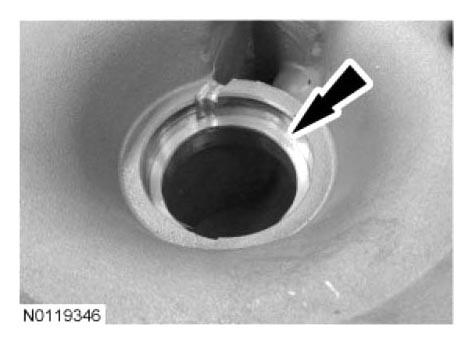

Install the differential bearing shim.
NOTE: If new differential bearings are installed refer to the DIFFERENTIAL SHIM SELECTION in this information.

Fig 1: Locating Differential Bearing Shim
Courtesy of FORD MOTOR CO.

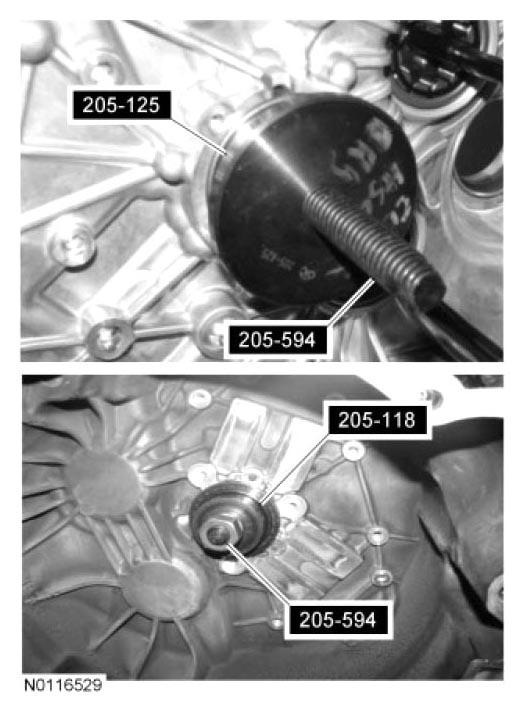

Using the special tools, install the clutch housing differential bearing race.

Fig 2: Installing Clutch Housing Differential Bearing Race
Courtesy of FORD MOTOR CO.

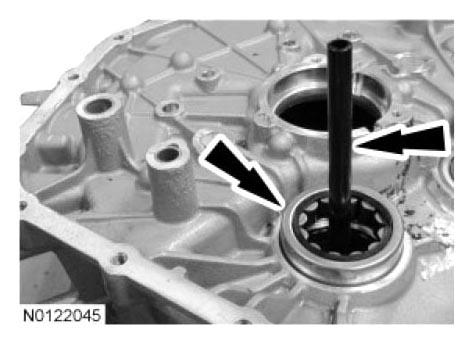

Install the new lube feed tubes and position the clutch housing output shaft bearings in place.
NOTE: Clutch housing output shaft bearing 1 shown in illustration, clutch housing output shaft bearing 2 similar.

Fig 3: Locating Clutch Housing Output Shaft Bearings
Courtesy of FORD MOTOR CO.

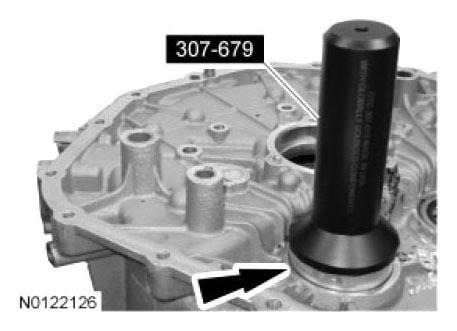

Using the special tool, install the clutch housing output shaft bearings.
NOTE: Clutch housing output shaft bearing 1 shown in illustration, clutch housing output shaft bearing 2 similar.

Fig 4: Locating Clutch Housing Output Shaft Bearings
Courtesy of FORD MOTOR CO.

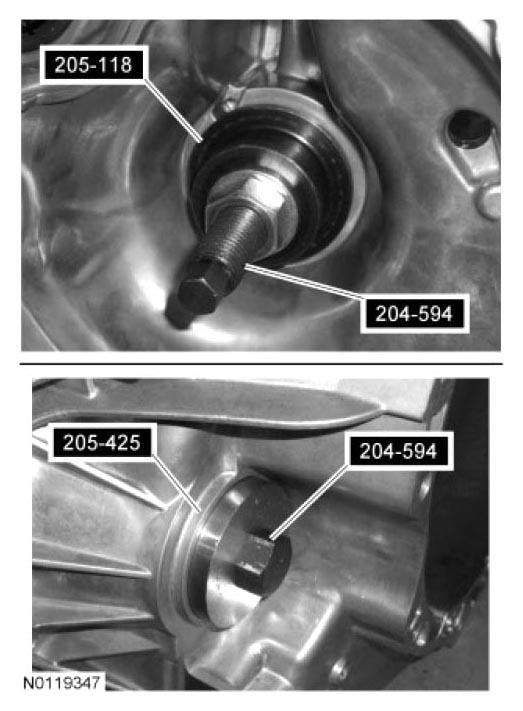

Using the special tools, install the new clutch housing input shaft bearing.

Fig 5: Installing Clutch Housing Input Shaft Bearing
Courtesy of FORD MOTOR CO.

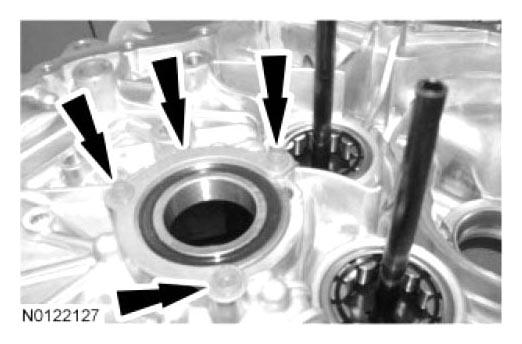

Install the clutch housing input shaft bearing retainer and input shaft bearing retainer bolts.
- Tighten to 11 Nm (97 lb-in).

  Fig 6: Locating Clutch Housing Input Shaft Bearing Retainer Bolts
  Courtesy of FORD MOTOR CO.
