Clutch Engagement System: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clutch. For additional information, refer to CLUTCH in this information.
Remove the Z-washers from the engagement system bearing unit.

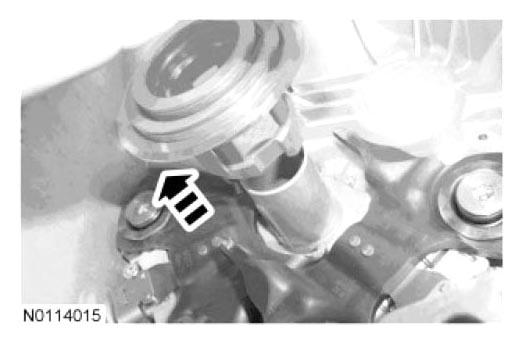

Fig 1: Locating Z-Washers
Courtesy of FORD MOTOR CO.
Remove the engagement system bearing unit.
NOTE: The engagement system bearing unit should be removed easily.

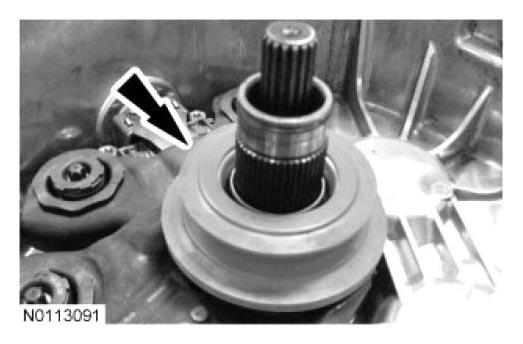

Fig 2: Removing Engagement System Bearing Unit
Courtesy of FORD MOTOR CO.
Remove the clutch motors. For additional information, refer to CLUTCH MOTOR - NO. 1 and CLUTCH MOTOR - NO. 2 in this information.
Remove the 4 spring retainer bolts from the spring retainers and remove the spring retainers.
NOTE: Remove the spring retainer bolts by loosening them slightly in an alternating pattern or damage can occur to the clutch actuator levers.

NOTE: The spring retainers and actuator levers are matched sets with corresponding serial numbers. If the spring retainers and actuator levers are being reused, mark on each spring retainer and actuator lever for assembly.

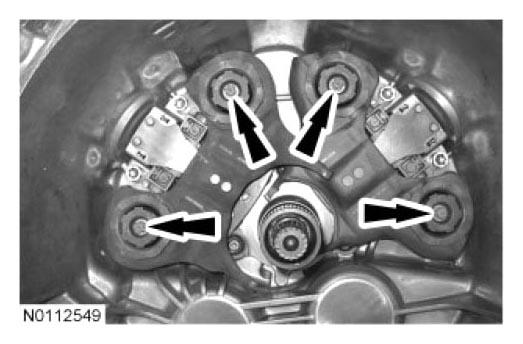

Fig 3: Locating Spring Retainer Bolts
Courtesy of FORD MOTOR CO.
Install clutch actuator lever locks as shown in illustration if available.

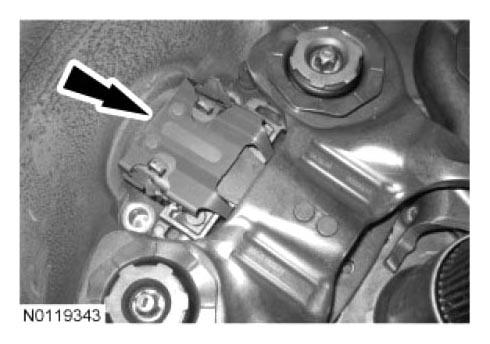

Fig 4: Locating Clutch Actuator Lever Locks
Courtesy of FORD MOTOR CO.
Remove the 2 bolts from the clutch actuator lever 1.

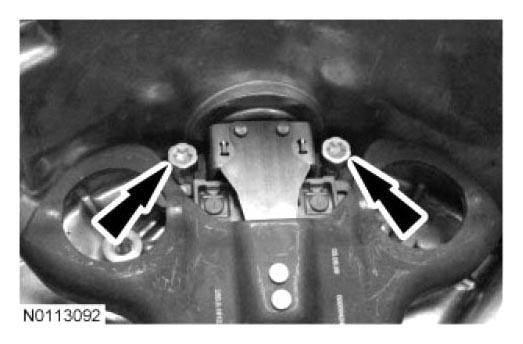

Fig 5: Locating Clutch Actuator Lever Bolts
Courtesy of FORD MOTOR CO.
Remove the 2 bolts from the clutch actuator lever 2.

Fig 6: Locating Clutch Actuator Lever Bolts
Courtesy of FORD MOTOR CO.

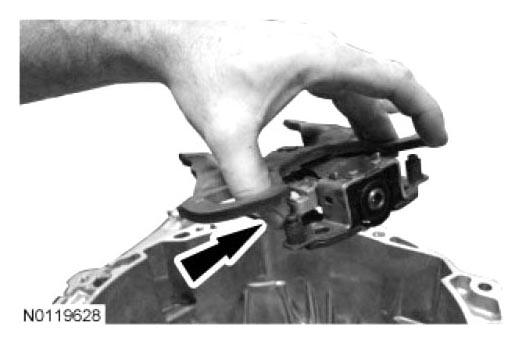

Remove the clutch actuator lever 1.
NOTE: Be sure to properly handle the actuator lever as shown in illustration or damage may occur.

Fig 7: Locating Clutch Actuator Lever
Courtesy of FORD MOTOR CO.
Remove the clutch actuator lever 2.
NOTE: Be sure to properly handle the actuator lever as shown in illustration or damage may occur.

Fig 8: Locating Clutch Actuator Lever
Courtesy of FORD MOTOR CO.
