Transmission Draining and Filling: Material

WARNING: This page is about a different variant/trim than selected.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the fill plug.
NOTE: Prior to removal, clean the area surrounding the fill plug.

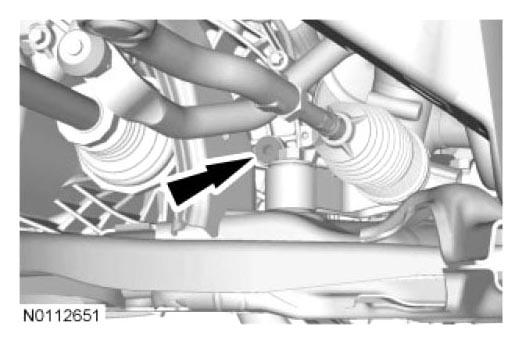

Fig 1: Locating Fill Plug
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain the fluid.

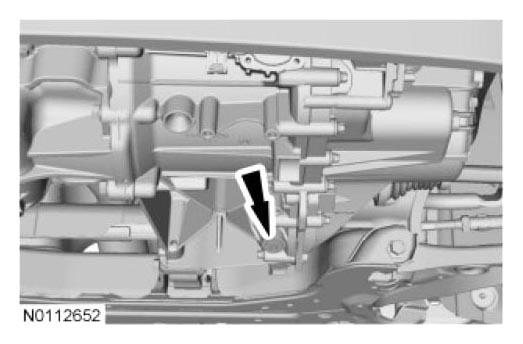

Fig 2: Locating Drain Plug
Courtesy of FORD MOTOR CO.
Install the drain plug.
- Tighten to 43 Nm (32 lb-ft).

  Fig 3: Locating Drain Plug
  Courtesy of FORD MOTOR CO.

NOTE: Do not overfill the transaxle. This will cause transaxle fluid to be forced out of the case.

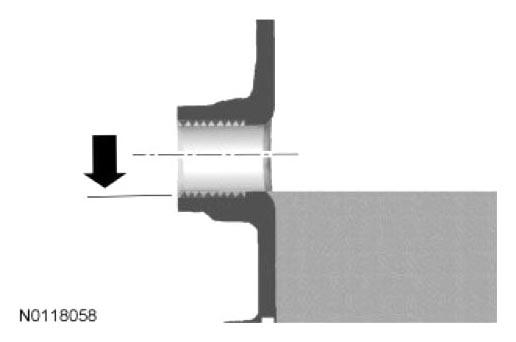

Fig 4: Identifying Transmission Fluid Level

Courtesy of FORD MOTOR CO.

Using a suitable oil suction gun, fill the transaxle to the correct level with the specified fluid. Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transaxle is full when the oil flow from the fill port has slowed to a broken stream or dripping.
Install the fill plug.
NOTE: Use a ball head hex socket to torque to specifications.
- Tighten to 43 Nm (32 lb-ft).

  Fig 5: Locating Fill Plug
  Courtesy of FORD MOTOR CO.
