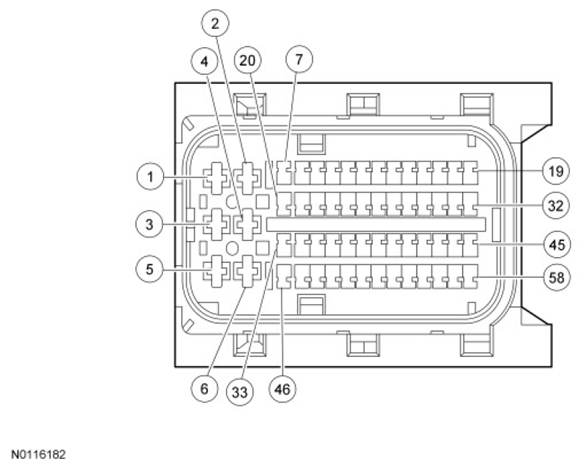

Transaxle External Harness Connector C1750B
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Description |
|---|---|
| 1 | Clutch 2 Phase W |
| 2 | Clutch 2 Phase U |
| 3 | Clutch 2 Phase V |
| 4 | Clutch 1 Phase W |
| 5 | Clutch 1 Phase V |
| 6 | Clutch 1 Phase U |
| 8 | Input Shaft Speed Sensor 2 |
| 9 | Output Shaft Speed (OSS) |
| 10 | Input Shaft Speed Sensor 1 |
| 12 | Input Shaft Speed Sensor 2 Supply |
| 19 | Clutch Motor 1 |
| 21 | Input Shaft Speed Sensor 1 Supply |
| 24 | Transmission Range (TR) Sensor 1 Input |
| 25 | TR Sensor 2 Input |
| 32 | Clutch Motor 1 |
| 34 | TR Sensor Supply 5 Volt |
| 35 | TR Sensor Ground |
| 37 | OSS Supply |
| 42 | Clutch Motor 2 |
| 43 | Clutch Motor 2 |
| 44 | Clutch Motor 2 |
| 45 | Clutch Motor 1 |
| 55 | Clutch Motor 2 |
| 56 | Clutch Motor 2 |
| 57 | Clutch Motor 1 |
| 58 | Clutch Motor 1 |
