Output Shaft Speed (OSS) Vehicle Harness C193

WARNING: This page is about a different variant/trim than selected.

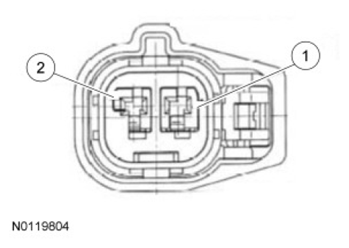

Fig 1: Identifying Output Shaft Speed (OSS) Vehicle Harness Connector C193
G06939224Courtesy of FORD MOTOR CO.
PIN REFERENCE CHART

Pin Number Circuit Function
1 Power
2 Output Shaft Speed (OSS)
