6th Gear

WARNING: This page is about a different variant/trim than selected.

The torque is introduced into the dual clutch via the flywheel. From there, the power is transmitted via clutch 2 to the hollow input shaft. The hollow input shaft transmits the torque to the sixth gear of the output shaft. The torque is transmitted to the differential via the output pinion.

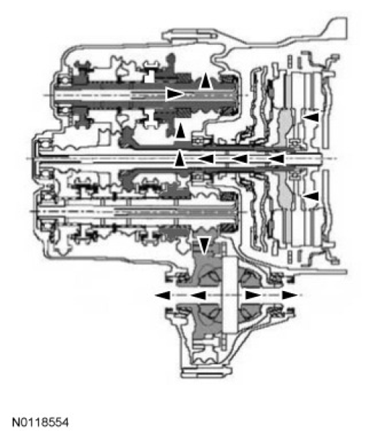

Fig 1: 6th Gear - Transaxle Power Flow Diagram
G06939207Courtesy of FORD MOTOR CO.
