5th Gear

WARNING: This page is about a different variant/trim than selected.

The torque is introduced into the dual clutch via the flywheel. From there, the power is transmitted via clutch 1 to the inner input shaft. The inner input shaft transmits the torque to the fifth gear of the output shaft. The torque is transmitted to the differential via the output pinion.

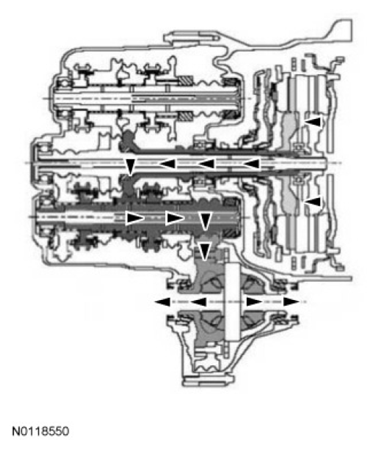

Fig 1: 5th Gear - Transaxle Power Flow Diagram
G06939206Courtesy of FORD MOTOR CO.
