2nd Gear

WARNING: This page is about a different variant/trim than selected.

The torque is introduced into the dual clutch via the flywheel. From there, the power is transmitted via clutch 2 to the hollow input shaft. The inner input shaft transmits the torque to the second gear of the output shaft. The torque is transmitted to the differential via the output pinion.

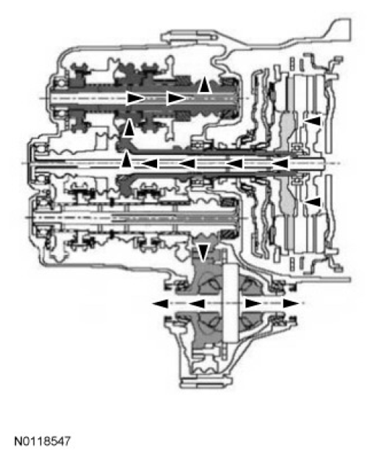

Fig 1: 2nd Gear - Transaxle Power Flow Diagram
G06939203Courtesy of FORD MOTOR CO.
