Wiper Pivot Arm - Rear

Wiper Pivot Arm - Rear

Removal and Installation

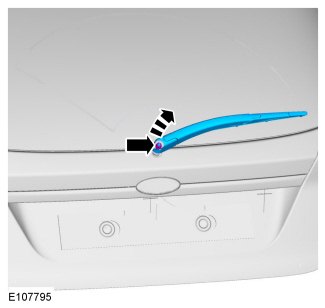

1. Lift the rear wiper pivot arm nut cover upwards and remove the rear wiper pivot arm nut.
- To install, tighten to 15 Nm (133 lb-in).





2. Remove the rear pivot wiper arm.

3. To install, reverse the removal procedure.
