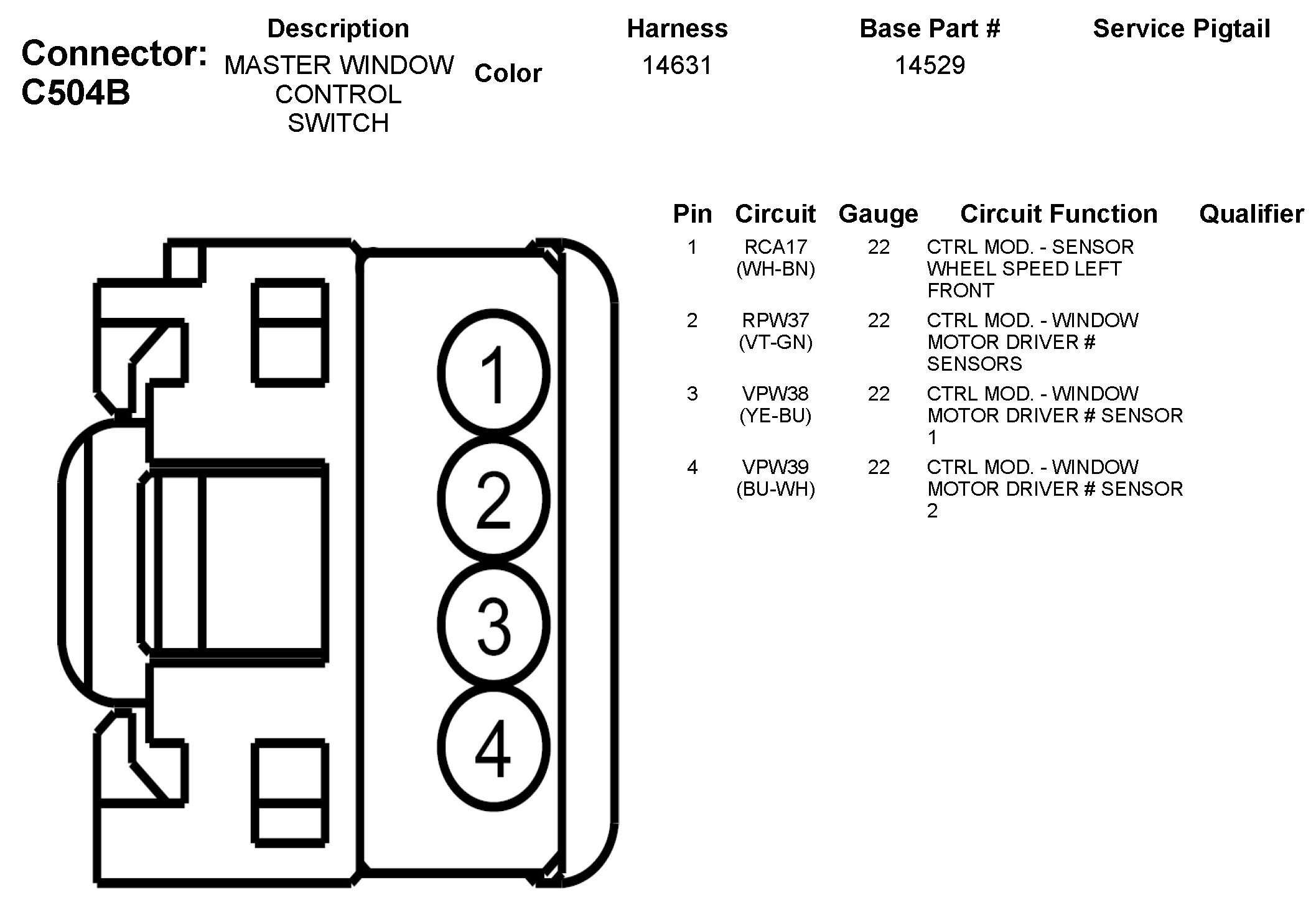

Home >> Ford >> 2011 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> C504B Master Window Control Switch
