Oil Pressure Sender: Service and Repair

Engine Oil Pressure (EOP) Switch





Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

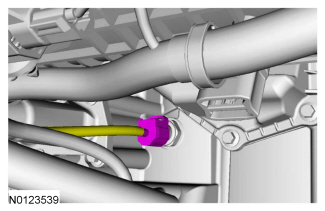

2. Disconnect the EOP switch electrical connector.

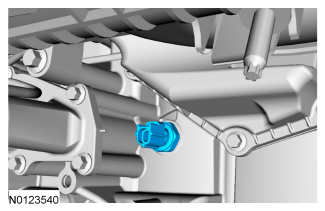

3. Remove the EOP switch.
- To install, tighten to 15 Nm (133 lb-in).





4. To install, reverse the removal procedure.
- Apply thread sealant to the EOP switch threads.
