Parking Lamp: Service and Repair

Parking Lamp - Auxiliary









1. Remove the front fender splash shield. For additional information, refer to Front End Body Panels Fender Splash Shield.

2. Disconnect the supplemental parking lamp electrical connector.

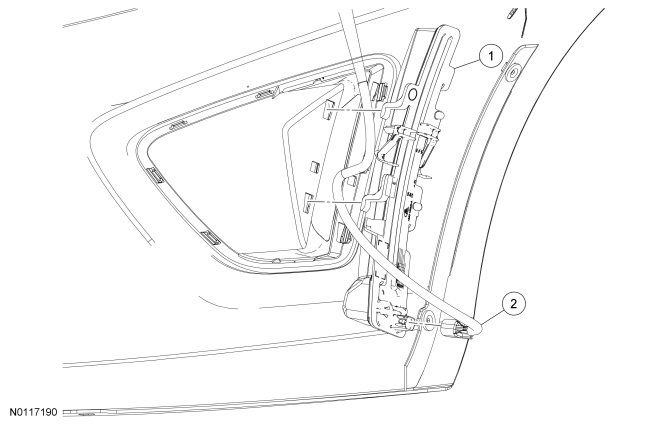

3. Unclip and remove the supplemental parking lamp assembly.

4. To install, reverse the removal procedure.
