Luggage Compartment Lid Latch




Luggage Compartment Lid Latch

Removal and Installation









1. Remove the 10 pin-type retainers and the luggage compartment lid trim panel.

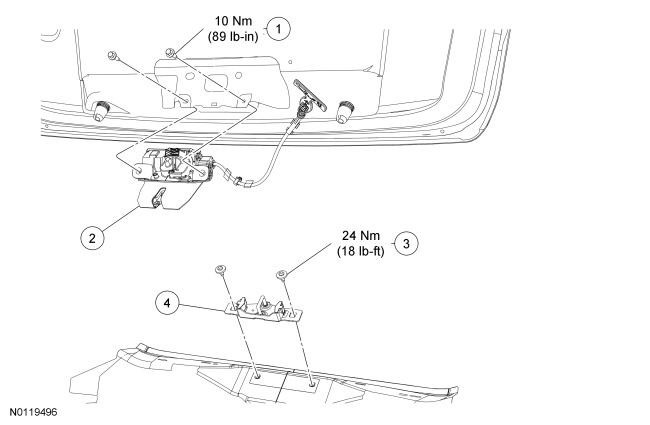

2. Refer to exploded view(s) and any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
