Brake Booster Vacuum Sensor: Service and Repair

Brake Booster Vacuum Sensor

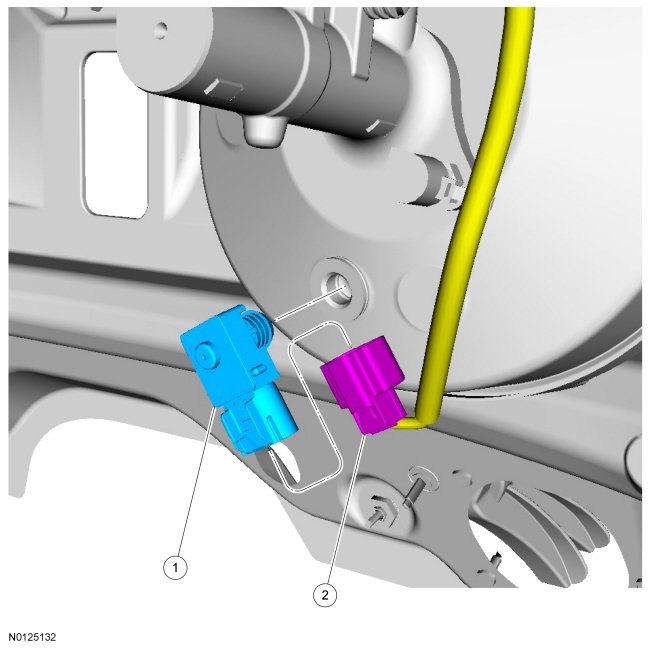

Exploded View










Removal

1. Disconnect the brake booster vacuum sensor electrical connector.

2. Remove the brake booster vacuum sensor.

Installation

NOTE: Please note the correct installation position in the exploded view. It is critical that the sensor be installed in the exact position that it was removed.

1. Install the brake booster vacuum sensor.

2. Connect the brake booster vacuum sensor electrical connector.
