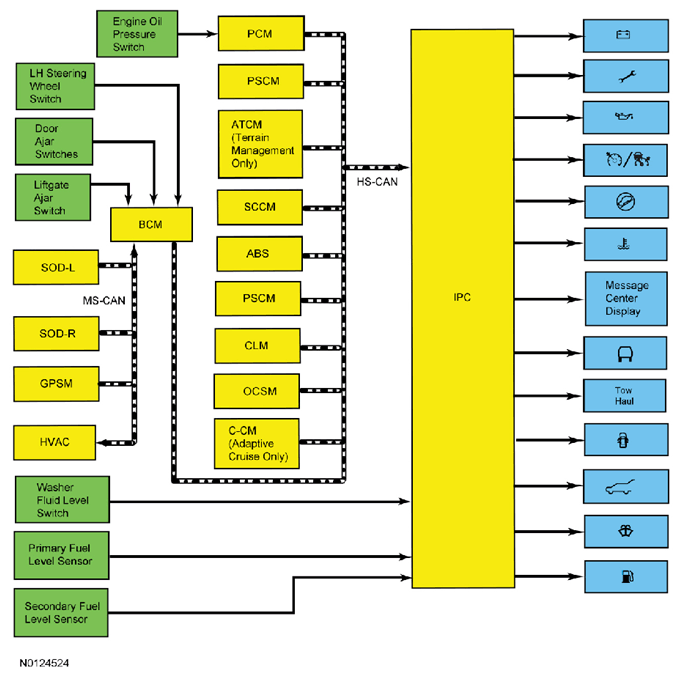

Home >> Ford >> 2011 >> Explorer Base, AWD, 6F50 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information Center - Instrumentation, Message Center, And Warning Chimes >> Description And Operation >> Message Center >> System Diagram
