Handles, Locks, Latches and Entry Systems - without Intelligent Access (IA)

Door Lock Control Switch

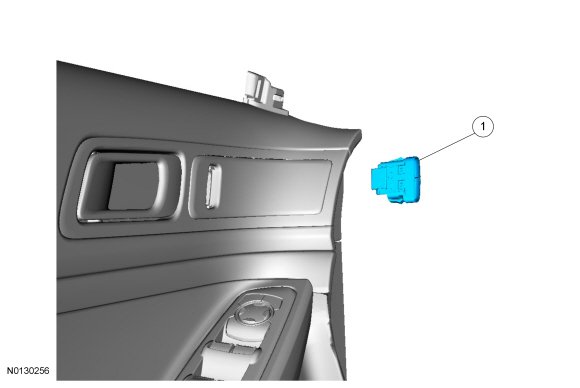

Exploded View










Removal

1. Remove the front door trim panel. REFER to Door Trim Panel - Front Service and Repair.

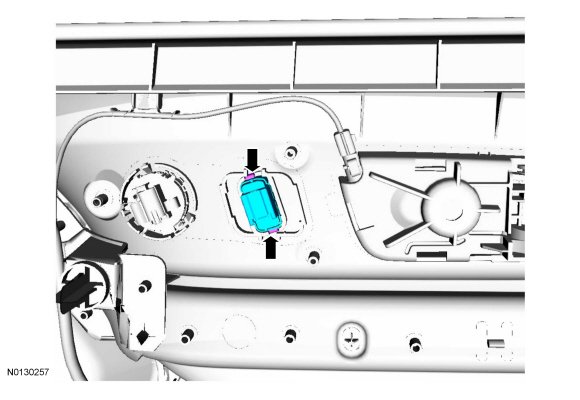

2. Release the tabs and remove the door lock control switch.





Installation

1. To install, reverse the removal procedure.
