Throttle Body: Service and Repair

Throttle Body

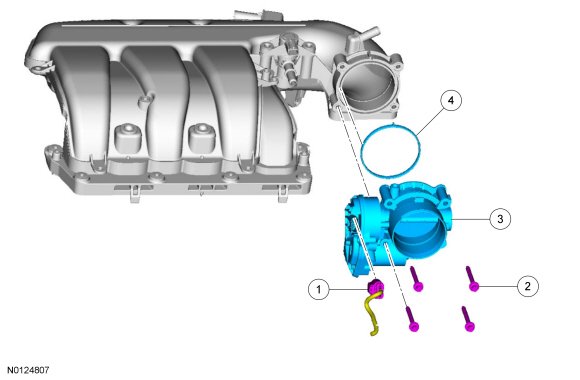

Exploded View

Throttle Body











Removal

1. Remove the ACL (Air Cleaner) outlet pipe. For additional information, REFER to Intake Air System Components - Exploded View [1][2]Diagrams.

2. Disconnect the TB (Throttle Body) electrical connector.

3. Remove the 4 bolts and the TB (Throttle Body).

4. Remove and discard the TB (Throttle Body) gasket.

Installation

1. Install a new TB (Throttle Body) gasket.

2. Install the TB (Throttle Body) and the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

3. Connect the TB (Throttle Body) electrical connector.

4. Install the ACL (Air Cleaner) outlet pipe. For additional information, REFER to Intake Air System Components - Exploded View [1][2]Diagrams.
