Heads Up Display Unit: Service and Repair

Head Up Display (HUD) Module

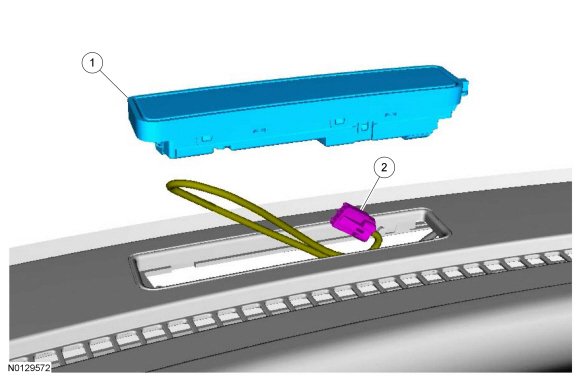

Exploded View










Removal

1. Using a non-marring tool, pry up on the LH (Left Hand) side of the HUD (Head Up Display) module to release it from the instrument panel upper section.

- Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.
