Auxiliary Blower Motor: Service and Repair

Auxiliary Blower Motor

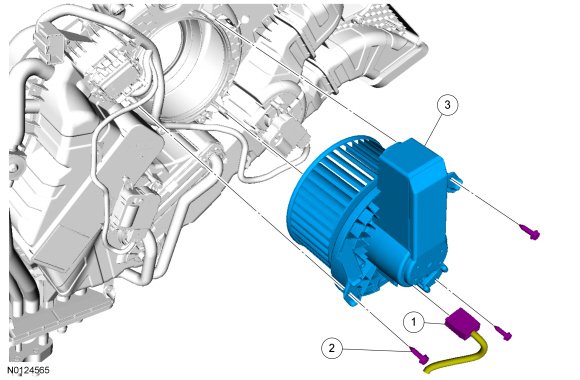

Exploded View










Removal

1. Remove the LH quarter trim panel. For additional information, REFER to C-Pillar Trim Panel - With Inflatable Safety Belts C-Pillar Trim Panel - With Inflatable Safety Belts or REFER to C-Pillar Trim Panel - Without Inflatable Safety Belts C-Pillar Trim Panel - Without Inflatable Safety Belts.

2. Disconnect the auxiliary blower motor electrical connector.

3. Detach the 2 auxiliary wire harness clips from the auxiliary heater core and evaporator core housing and position the wire harness away from the blower motor.

4. Remove the 3 auxiliary blower motor screws.

5. Remove the auxiliary blower motor.

Installation

1. To install, reverse the removal procedure.
