Piston Ring End Gap

Piston Ring End Gap

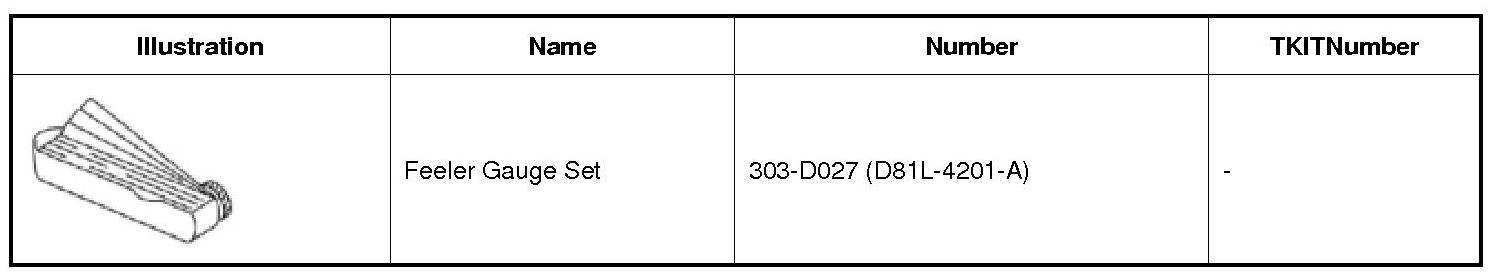

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in the appropriate engine for the appropriate specification.

NOTICE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

NOTE: Piston rings should not be transferred from one piston to another.

NOTE: The cylinder bore must be within specification for taper and out-of-round.

1. Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.





2. Use the Feeler Gauge Set to measure the top piston ring end gap and the second piston ring end gap.
