Camshaft Runout




Camshaft Runout

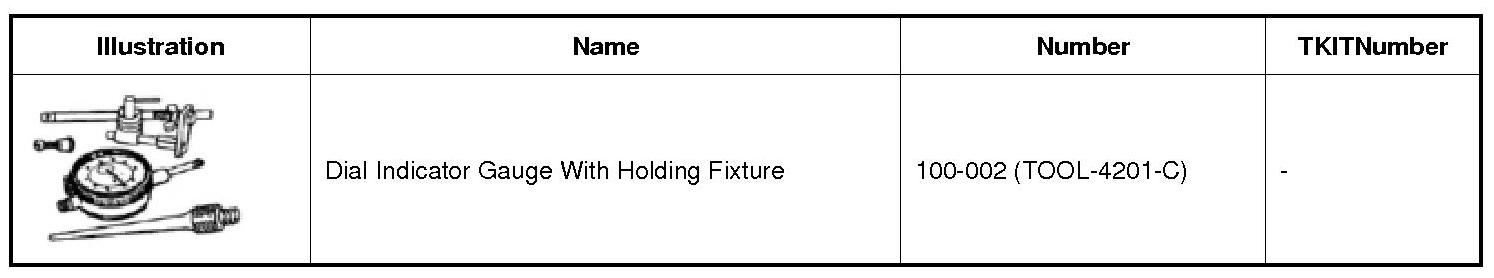

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in the appropriate engine for the appropriate specification.

NOTE: Camshaft journals must be within specifications before checking runout.

1. Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft runout.

- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading.
