Camshaft Lobe Lift

Camshaft Lobe Lift

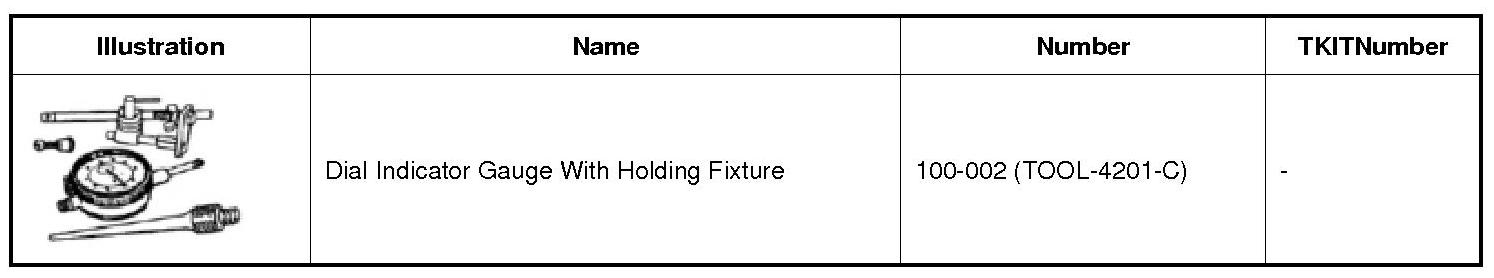

Special Tool(s)






General Procedure

NOTE: Refer to general specifications in the appropriate engine for the appropriate specification.

1. Use the Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.

- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading to figure the camshaft lobe lift.
