Home >> Ford >> 2011 >> Explorer AWD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> C4245 Third Row Power-Fold Seat Motor, Left

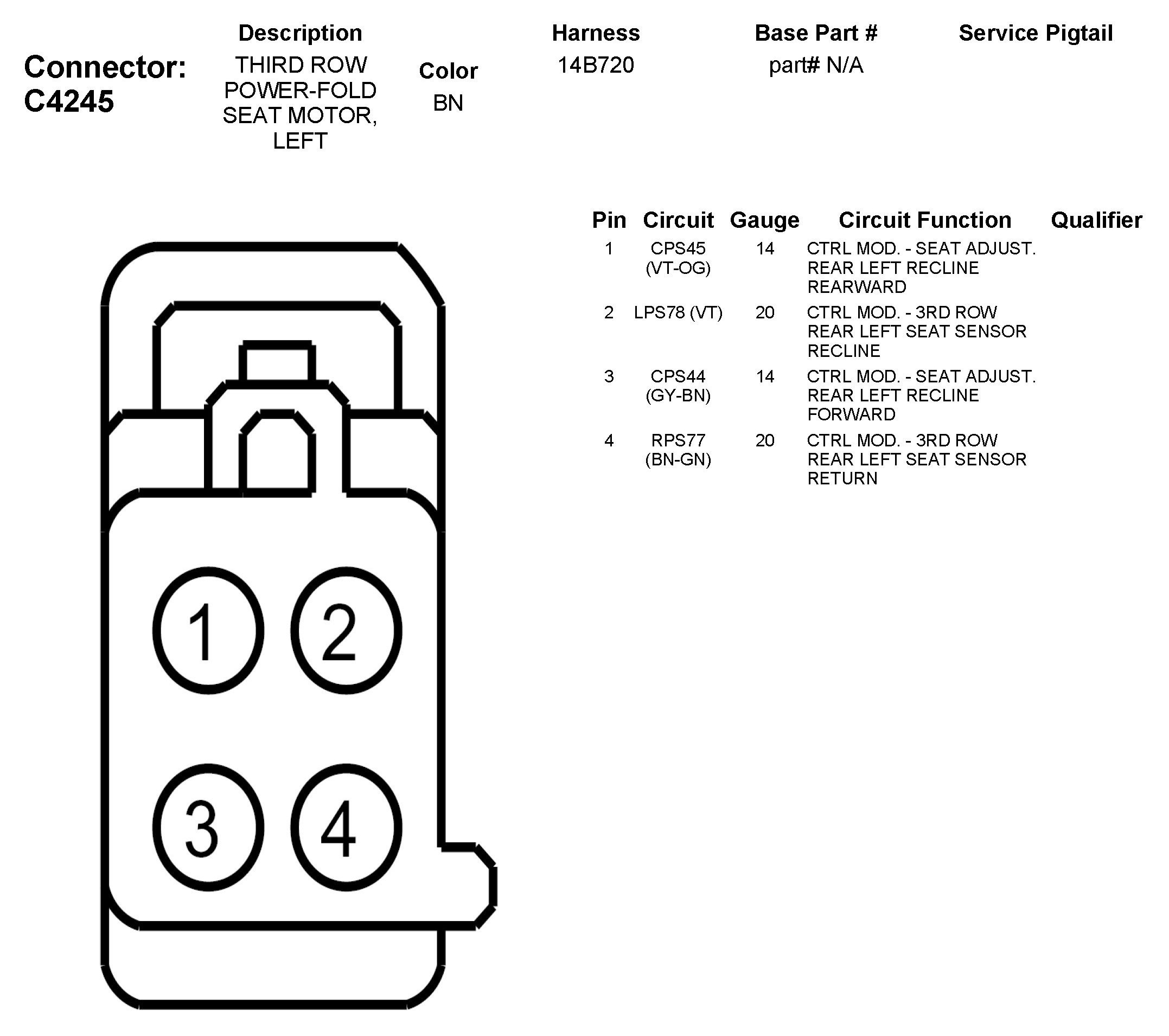

C4245 Third Row Power-Fold Seat Motor, Left
