Trunk / Liftgate Interior Trim Panel: Service and Repair

Liftgate Trim Panel

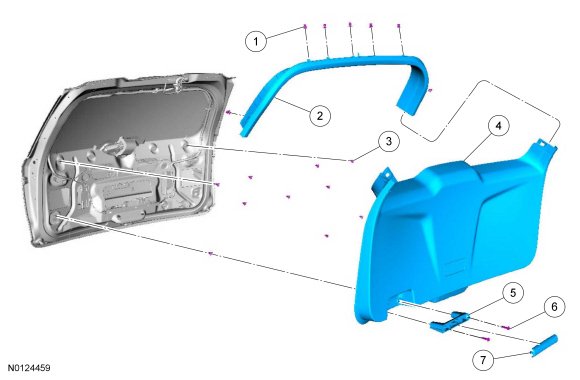

Exploded View










Removal

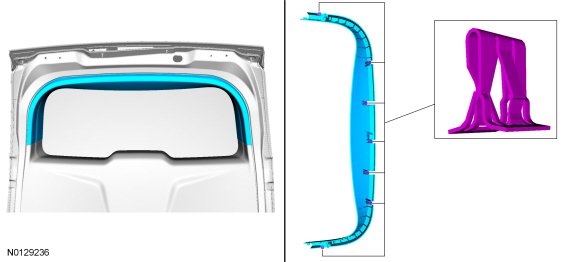

1. Disconnect the 7 liftgate moulding clips and remove the liftgate moulding.

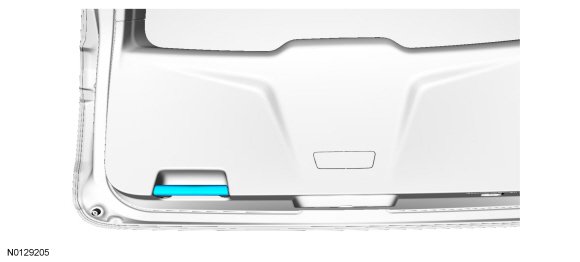

2. Remove the liftgate assist handle bolt cover.

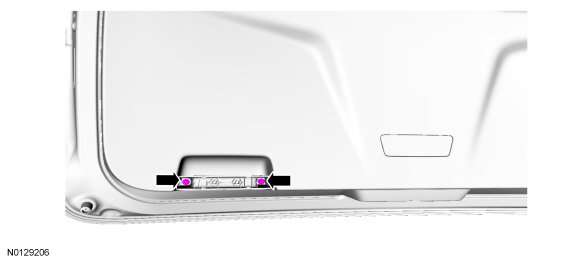

3. Remove the 2 liftgate assist handle bolts.

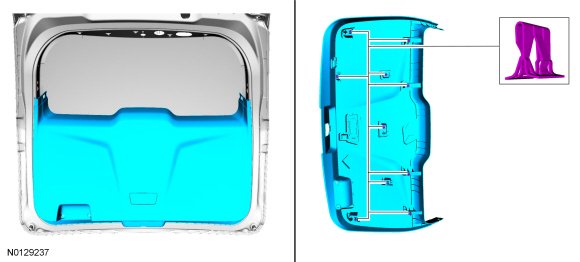

4. Disconnect the 10 liftgate trim panel clips and remove the liftgate trim panel.





Installation

1. To install, reverse the removal procedure.
