Special Tool(s)

SPECIAL TOOL DESCRIPTION CHART

Courtesy of FORD MOTOR CO.

Separator, Ball Joint
204-592

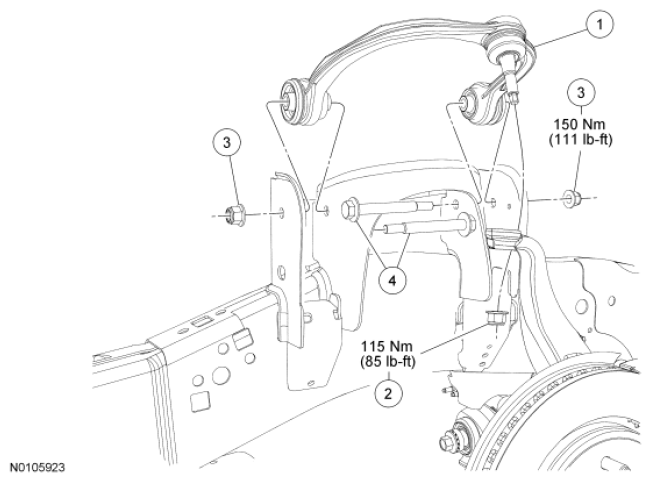

Fig 1: Exploded View Of Upper Arm Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	3091	LH/3084 RH Upper arm
2	W520215	Upper ball joint nut
3	W520215	Upper arm-to-frame nuts (2 required)
4	W707841	Upper arm-to-frame bolts (2 required)
