Special Tool(s)
SPECIAL TOOL DESCRIPTION CHART
| Separator, Ball Joint 204-592 |

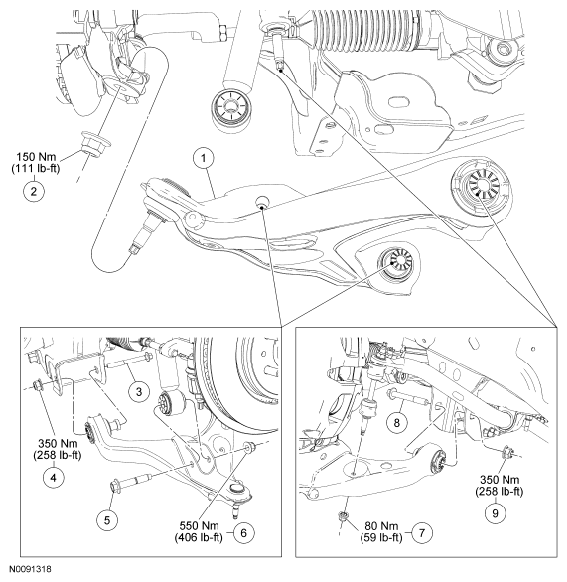

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3051 LH/3042 RH | Lower arm |
| 2 | W707254 | Lower ball joint nut |
| 3 | W711399 | Lower arm forward bolt |
| 4 | W711310 | Lower arm forward nut |
| 5 | W712682 | Shock absorber lower bolt |
| 6 | W520217 | Shock absorber lower nut |
| 7 | N807144 | Stabilizer bar link lower nut |
| 8 | W709877 | Lower arm rearward bolt |
| 9 | W711310 | Lower arm rearward nut |
