Special Tool(s)

SPECIAL TOOLS CHART

G07457773Courtesy of FORD MOTOR CO.
 Brake Adjusting Gauge
206-D002 (D81L-1103-A) or equivalent
  1. NOTE: Make sure the parking brake is fully released.

    Using the release handle, release the parking brake control.

  2. Remove the rear brake disc. For additional information, refer to REAR DISC BRAKES .
  3. Using the Brake Adjusting Gauge, measure the inside diameter of the drum portion of the rear brake disc and set the locking screw.
    • Record the measurement.

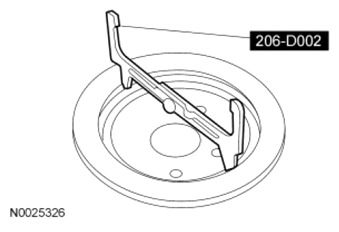

    Fig 1: Measuring Inside Diameter Of Drum Portion Of Rear Brake Disc
    G07457774Courtesy of FORD MOTOR CO.
  4. Place the Brake Adjusting Gauge over the widest diameter of the parking brake shoes.

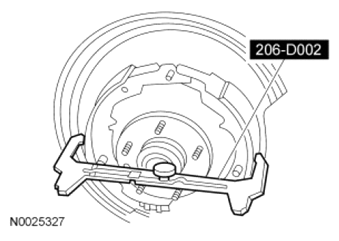

    Fig 2: Placing Brake Adjusting Gauge Over Widest Diameter Of Parking Brake Shoes
    G07457775Courtesy of FORD MOTOR CO.
  5. Adjust the parking brake shoe clearance to 0.45 mm (0.02 in) less than the inside diameter of the drum portion of the rear brake disc.
    • Rotate the parking brake shoe adjuster to achieve the correct parking brake shoe-to-brake disc clearance.
  6. Install the rear brake disc. For additional information, refer to REAR DISC BRAKES .
  7. Test the parking brake for normal operation.
