Brake Master Cylinder: Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

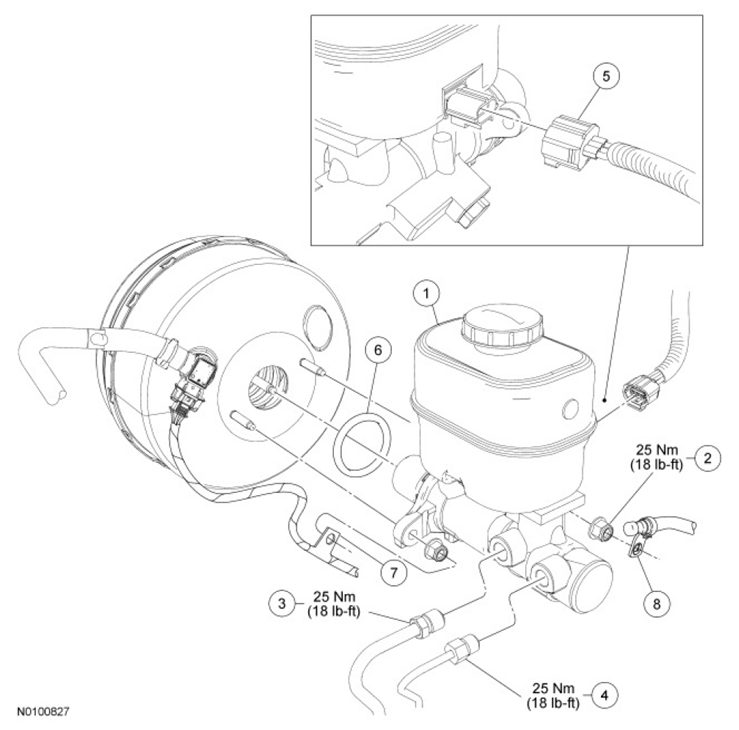

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C156 | Brake master cylinder and reservoir assembly |
| 2 | W520212 | Brake master cylinder nut (2 required) |
| 3 | - | Primary brake tube fitting (part of 2A040) |
| 4 | - | Secondary brake tube fitting (part of 2B253) |
| 5 | - | Brake fluid level switch electrical connector (part of 12A581) |
| 6 | 2152 | Brake master cylinder-to-brake booster seal |
| 7 | - | Vacuum sensor wiring harness locator (part of 9C490) |
| 8 | - | Front axle vent hose locator (part of 3B476) |
