Removal and Installation
WARNING: This page is about a different variant/trim than selected.

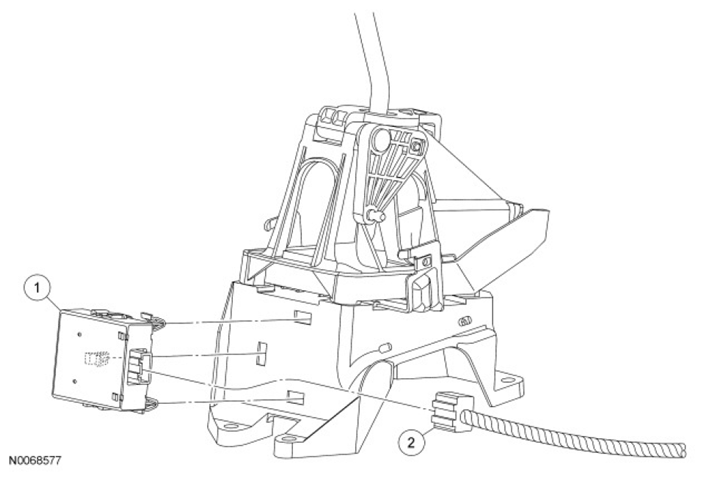

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H473 | 4X4 control module |
| 2 | - | Electrical connector (part of 14405) |
- Remove the floor console. For additional information, refer to INSTRUMENT PANEL article.
- Disconnect the electrical connector.
- Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.
- To install, reverse the removal procedure.
