Power Transfer Unit (PTU)

WARNING: This page is about a different variant/trim than selected.

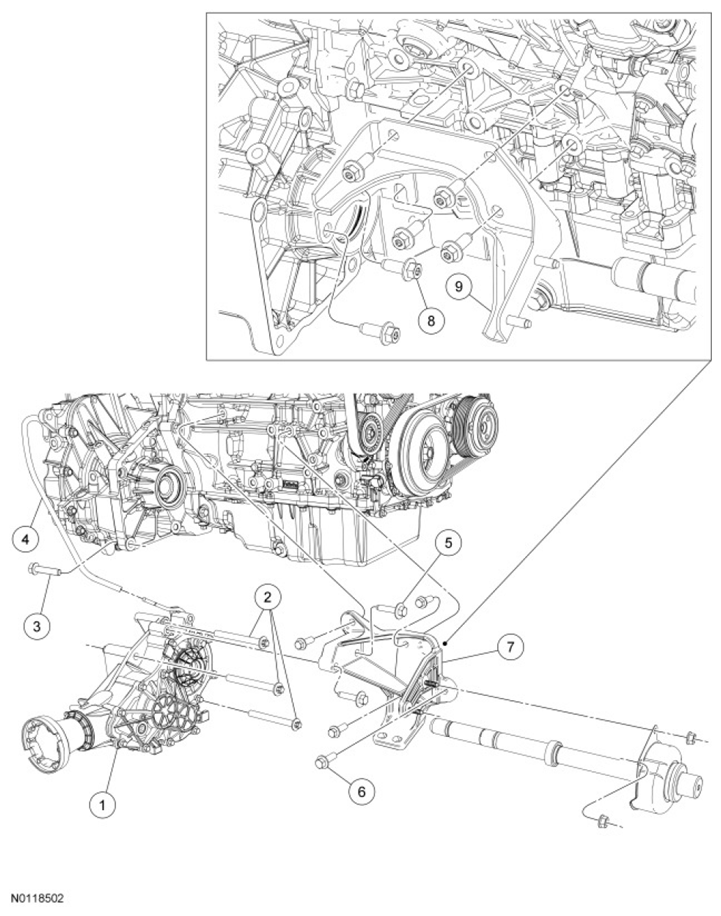

Fig 1: Identifying Power Transfer Unit (PTU) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	7251	Power Transfer Unit (PTU)
2	W706822	PTU -to-transaxle bolts (3 required)
3	W500121-S	PTU -to-transaxle bolt (M10)
4	7034	Vent tube
5	W710926	PTU bracket-to-PTU bolts (2.5L) (2 required)
6	W500034	PTU bracket-to-engine bolts (2.5L) (4 required)
7	3K305	PTU -to-engine bracket (2.5L)
8	W707385-S	PTU -to-PTU bracket bolts (3.0L) (6 required)
9	3K305	PTU -to-engine bracket (3.0L)

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
Remove the driveshaft. For additional information, refer to DRIVESHAFT article.
Remove the 4 bolts and the crossmember brace.

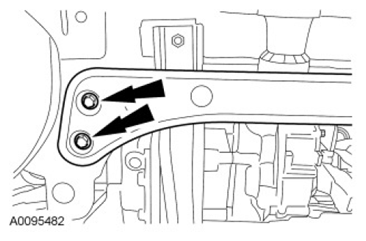

Fig 2: Remove/Install Crossmember Brace And Bolts
Courtesy of FORD MOTOR CO.

Vehicles equipped with 3.0L
Remove the catalytic converter - 3.0L RH. For additional information, refer to EXHAUST SYSTEM article.
Vehicles equipped with 2.5L and hybrid
Remove the 2 exhaust bracket nuts.
Hybrid vehicles
Remove the 2 bolts and the exhaust bracket.
Remove the Power Transfer Unit (PTU)-to-engine bracket.
1. Remove the 4 PTU -to-engine bracket bolts.
2. Remove the inner PTU bracket-to-PTU bolt.
3. Fully loosen the outer PTU bracket-to-PTU bolt and remove the bolt with the bracket.
Except hybrid vehicles
Remove the 6 PTU -to-engine bracket bolts and the bracket.
All vehicles
Disconnect the PTU vent tube and position it aside.
Remove the 4 PTU -to-transaxle bolts.
Remove the PTU .
