Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G07443064
 Handle 205-153 (T80T-4000-W)
G07443065
 Installer, PTO Driven Gear Oil Seal 308-429
  1. Using the Handle and PTO Driven Gear Oil Seal Installer, install the intermediate shaft seal.

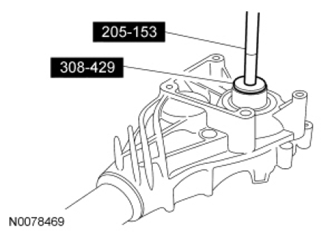

    Fig 1: Installing Intermediate Shaft Seal
    G07443066Courtesy of FORD MOTOR CO.
  2. Install the Power Transfer Unit (PTU). For additional information, refer to POWER TRANSFER UNIT (PTU)  in this service information.
