Output Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using the PTO Drive Gear Outer Oil Seal Installer, install the PTU  output shaft oil seal.

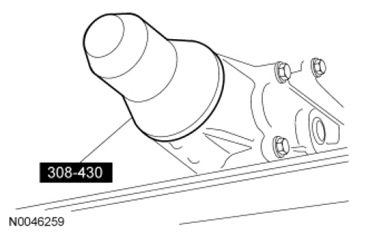

    Fig 1: Installing PTU Output Shaft Oil Seal
    G07443036Courtesy of FORD MOTOR CO.
  2. Install the deflector.
  3. Install the PTU  output shaft flange. For additional information, refer to OUTPUT FLANGE  in this service information.
