Cover Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
  3. Using the Bearing Cup Remover, the Extension from the Halfshaft Remover and a suitable slide hammer, remove and discard the deflector.

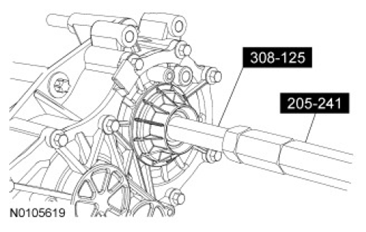

    Fig 1: Removing Deflector Using Special Tools
    G07443030Courtesy of FORD MOTOR CO.
  4. Remove the seal using the Slide Hammer and a dent puller inserted into the groove seal.

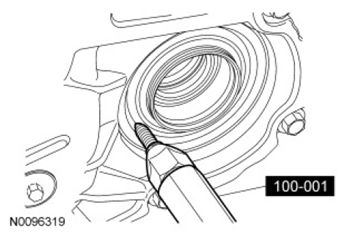

Fig 2: Removing Groove Seal
G07443031Courtesy of FORD MOTOR CO.
