Cover Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using the Halfshaft Oil Seal Installer, Rear Axle Oil Seal Installer and Handle, install the cover seal.
    • The seal is correctly installed if it is flush with the PTU  case cover.

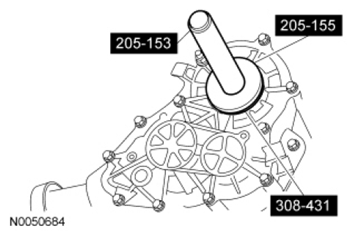

    Fig 1: Installing Cover Seal Using Special Tools
    G07443032Courtesy of FORD MOTOR CO.
  2. Using the Handle and PTO Driven Gear Oil Seal Installer, install the deflector.

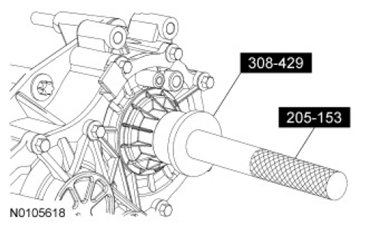

    Fig 2: Installing Deflector Using Handle And PTO Driven Gear Oil Seal Installer
    G07443033Courtesy of FORD MOTOR CO.
  3. Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.
