Wipers and Washers: Rear

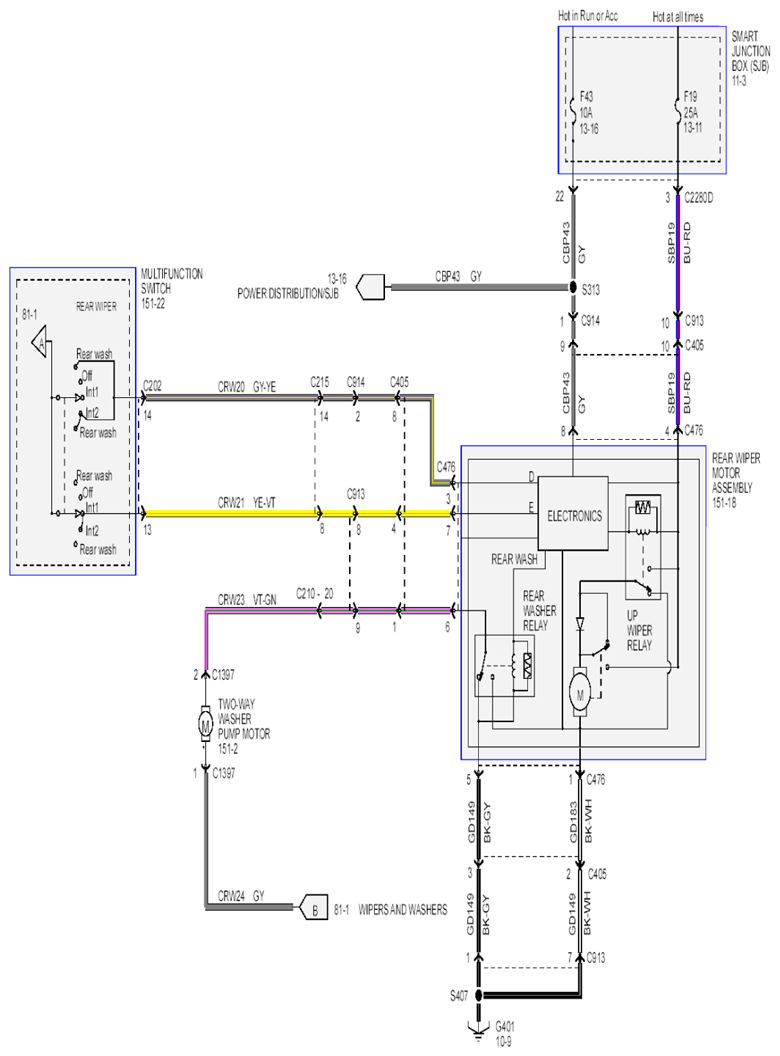

Fig 1: Wipers And Washers - Rear Circuit (2 Of 2)

G07855859

Courtesy of FORD MOTOR CO.
