Wipers and Washers: Front

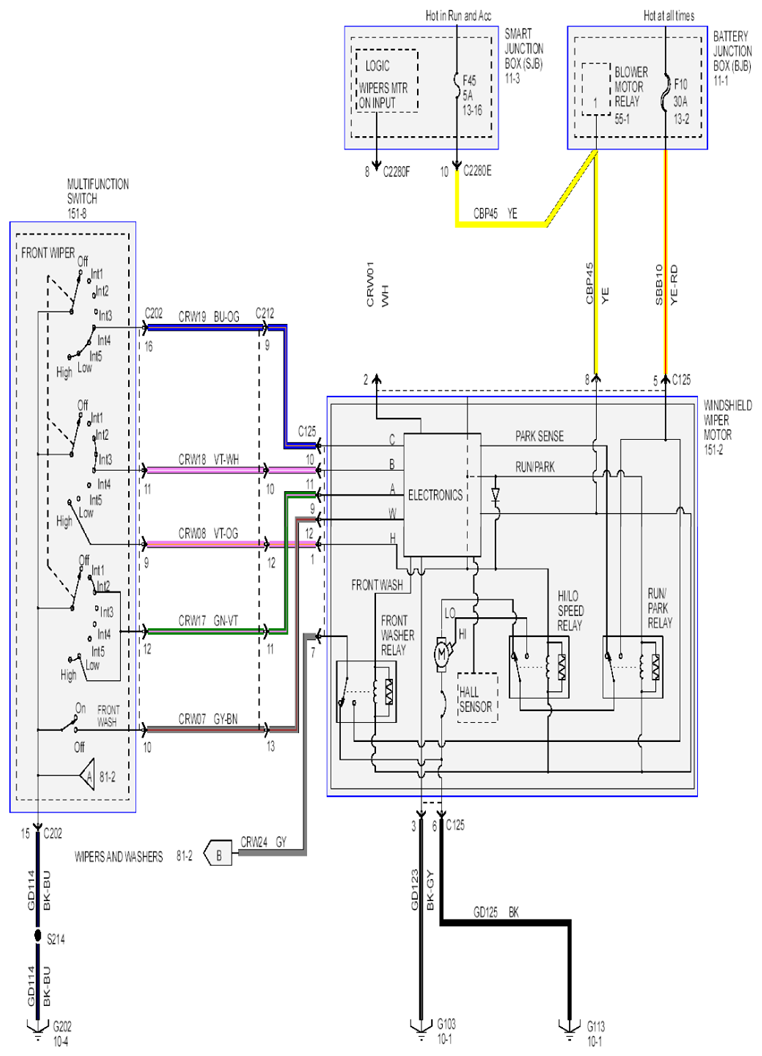

Fig 1: Wipers And Washers - Front Circuit (1 Of 2)

G07855858

Courtesy of FORD MOTOR CO.
