OEM Wiring Diagrams (Hybrid)
>>
Vehicle Dynamic Systems
Vehicle Dynamic Systems

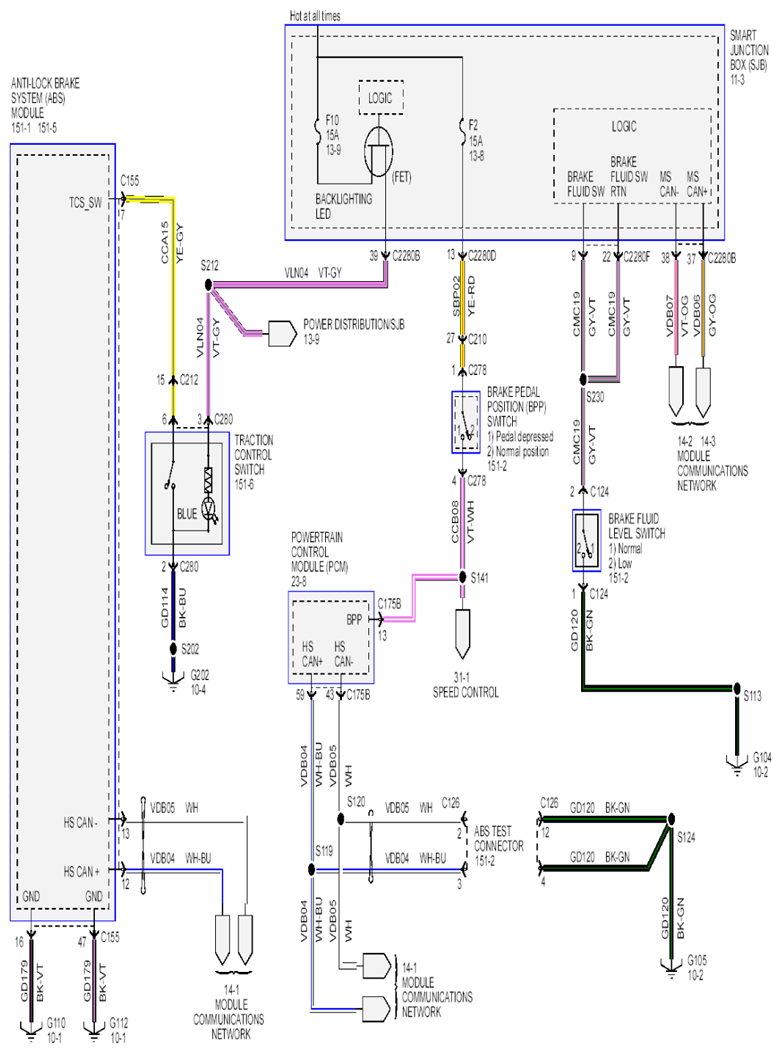

Fig 1: Vehicle Dynamic Systems Circuit (1 Of 3)
Courtesy of FORD MOTOR CO.

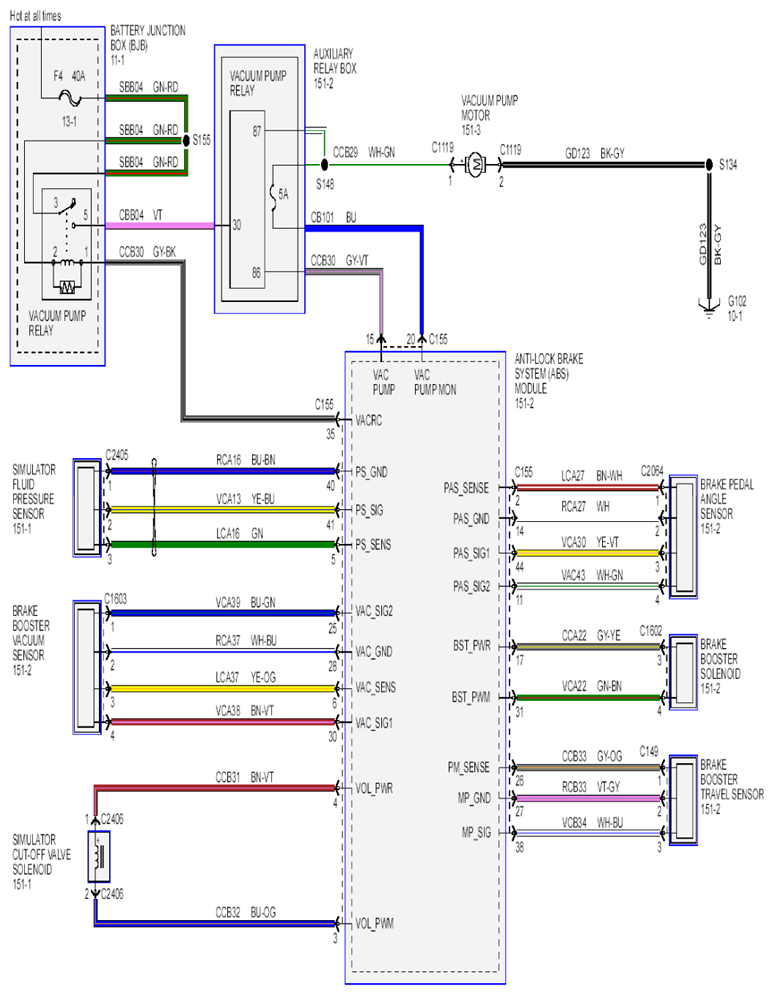

Fig 2: Vehicle Dynamic Systems Circuit (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Vehicle Dynamic Systems Circuit (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
