Turn Signal_Stop_Hazard Lamps
Turn Signal_Stop_Hazard Lamps

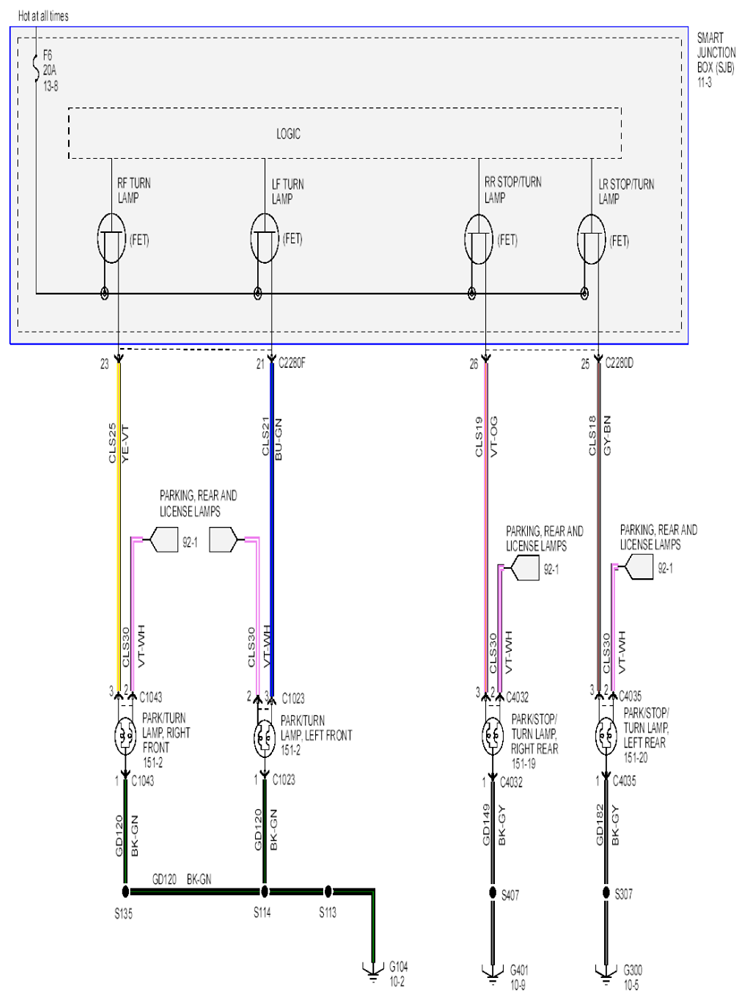

Fig 1: Turn Signal_Stop_Hazard Lamps Circuit (1 Of 2)
Courtesy of FORD MOTOR CO.

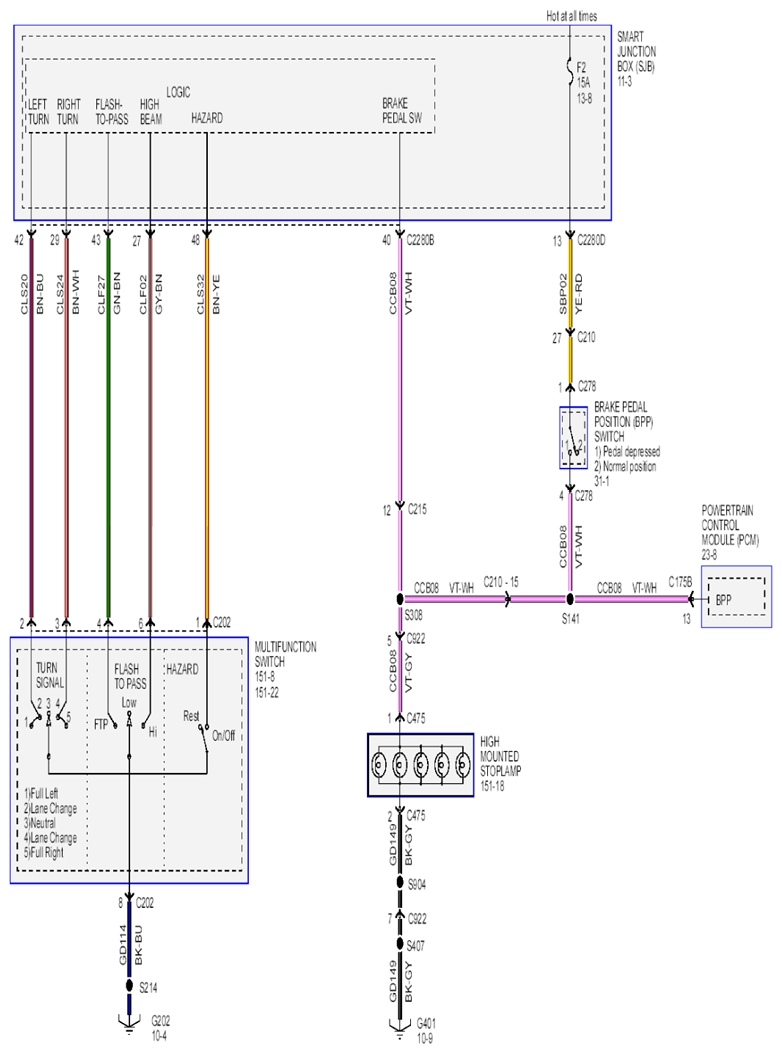

Fig 2: Turn Signal_Stop_Hazard Lamps Circuit (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
