Ford
>>
2011
>>
Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Transmission Controls
Transmission Controls

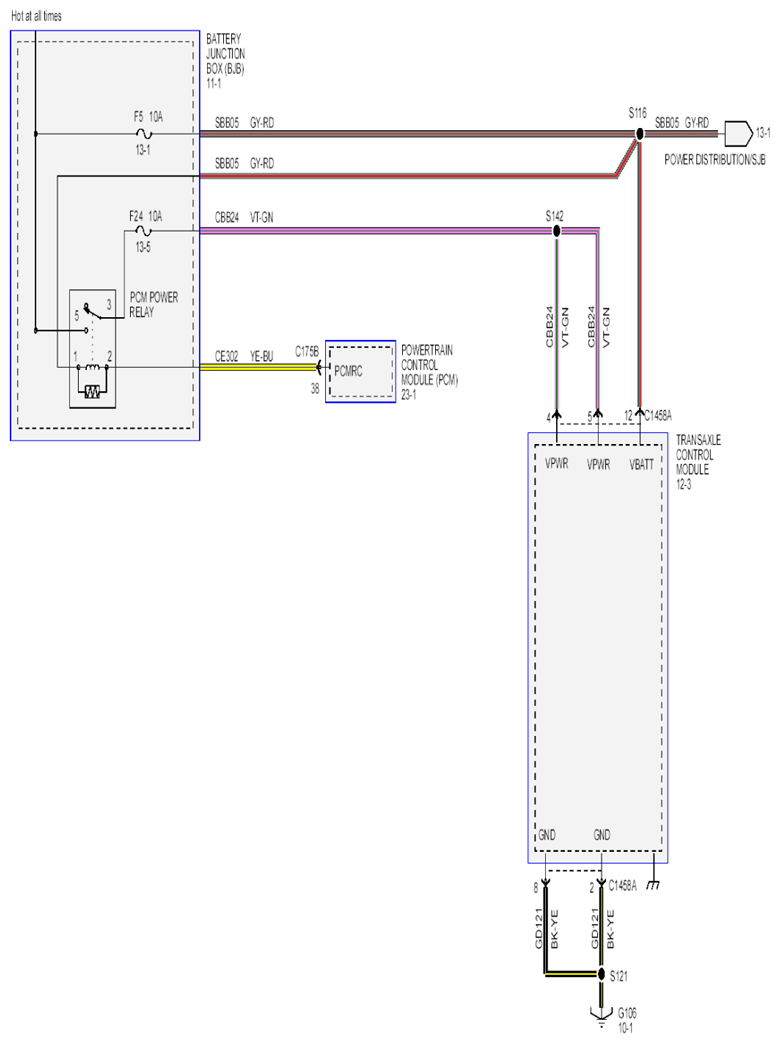

Fig 1: Transmission Controls Circuit (1 Of 2)
Courtesy of FORD MOTOR CO.

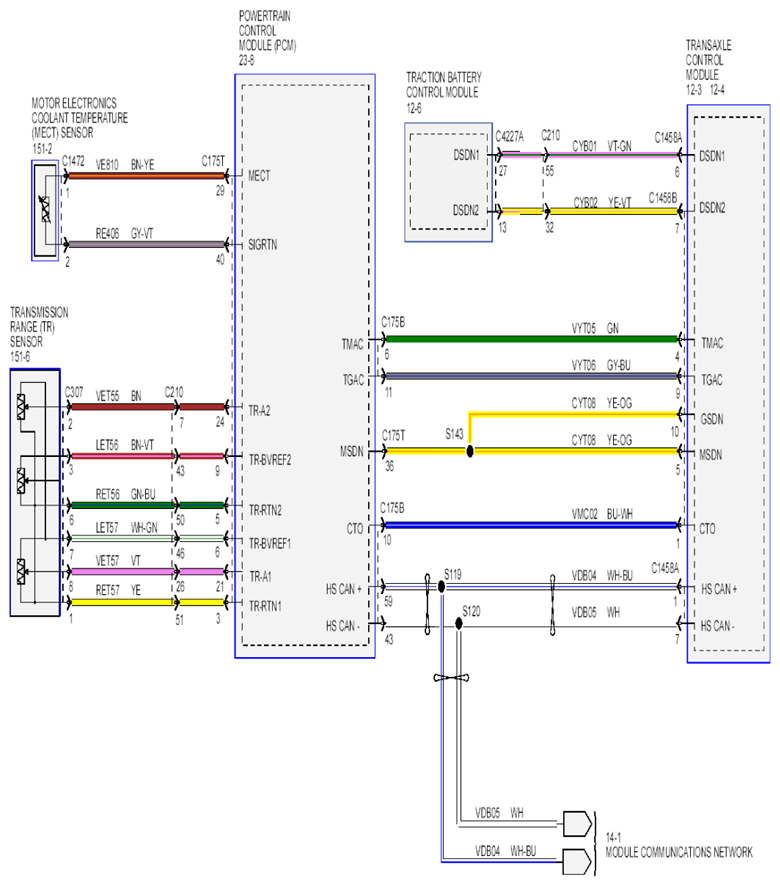

Fig 2: Transmission Controls Circuit (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
