Starting System
Starting System

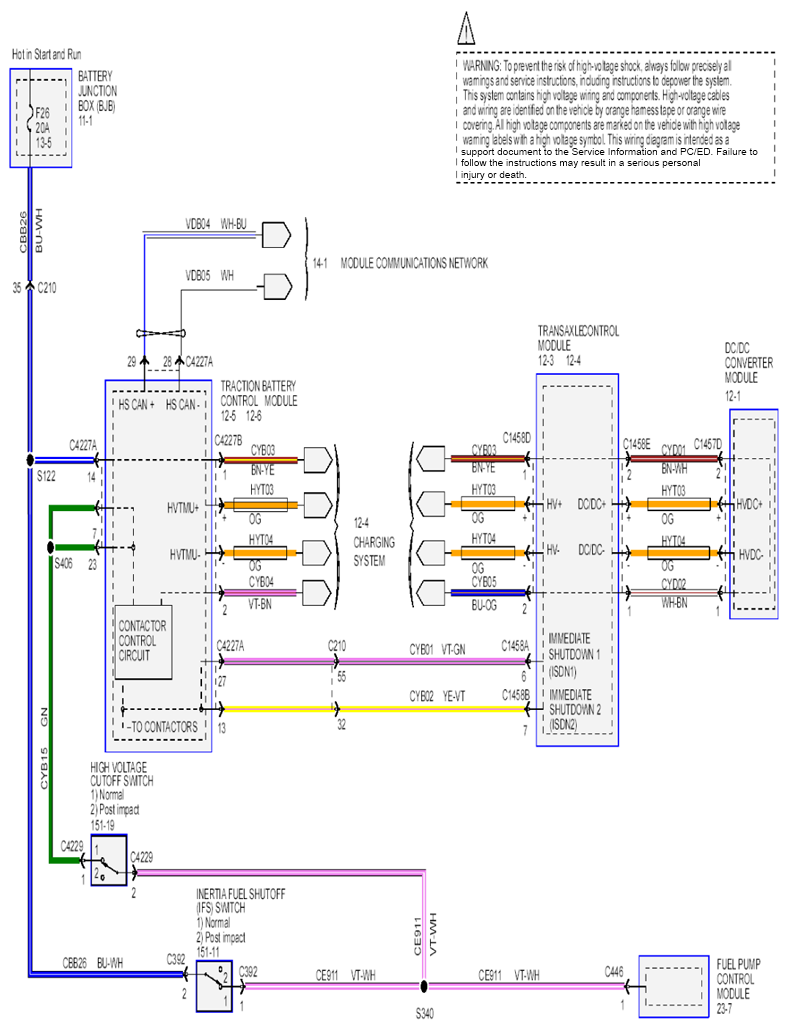

Fig 1: Starting System Schematic (1 Of 2)
Courtesy of FORD MOTOR CO.

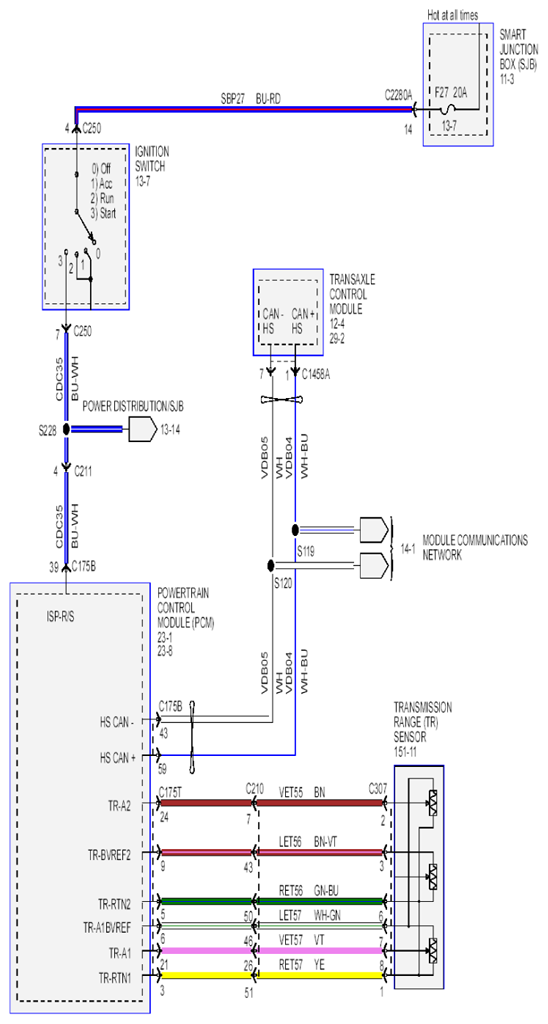

Fig 2: Starting System Schematic (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
