Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Shift Interlock
Shift Interlock

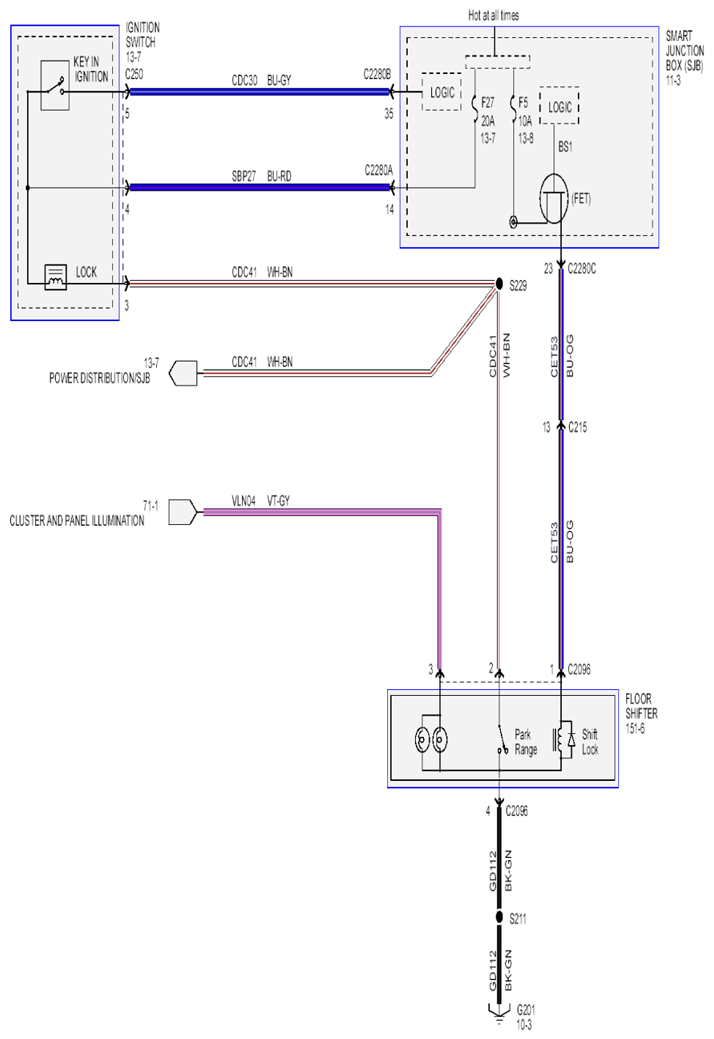

Fig 1: Shift Interlock Circuit
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
