Remove Keyless Entry and Alarm

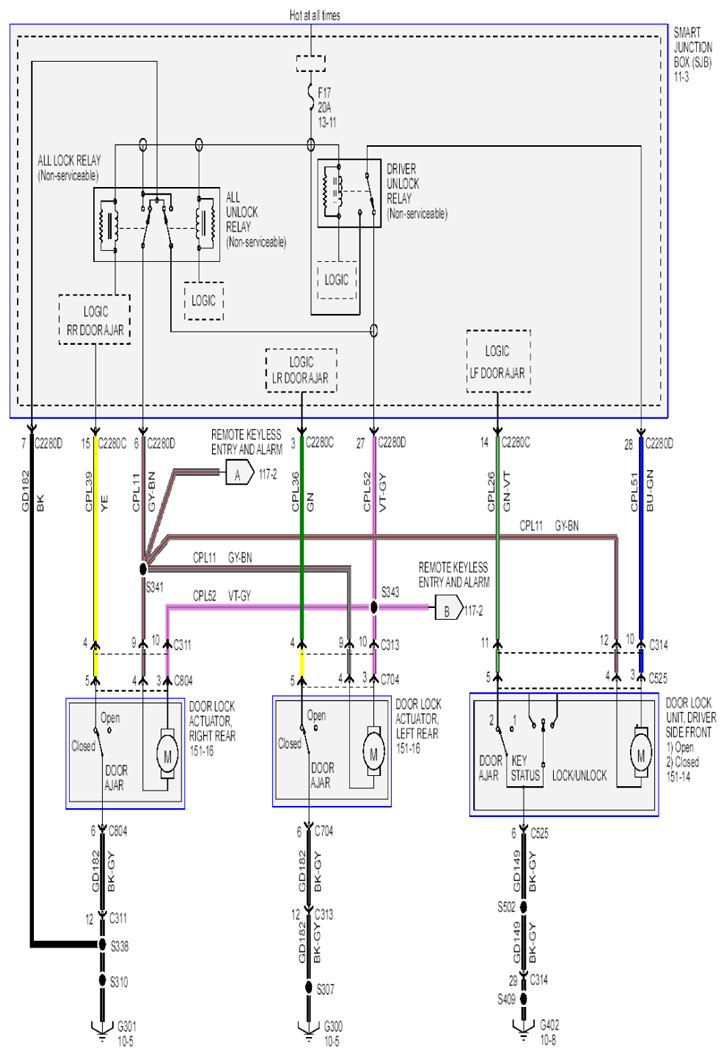

Fig 1: Keyless Entry And Alarm Circuit (1 Of 4)
G07855877Courtesy of FORD MOTOR CO.

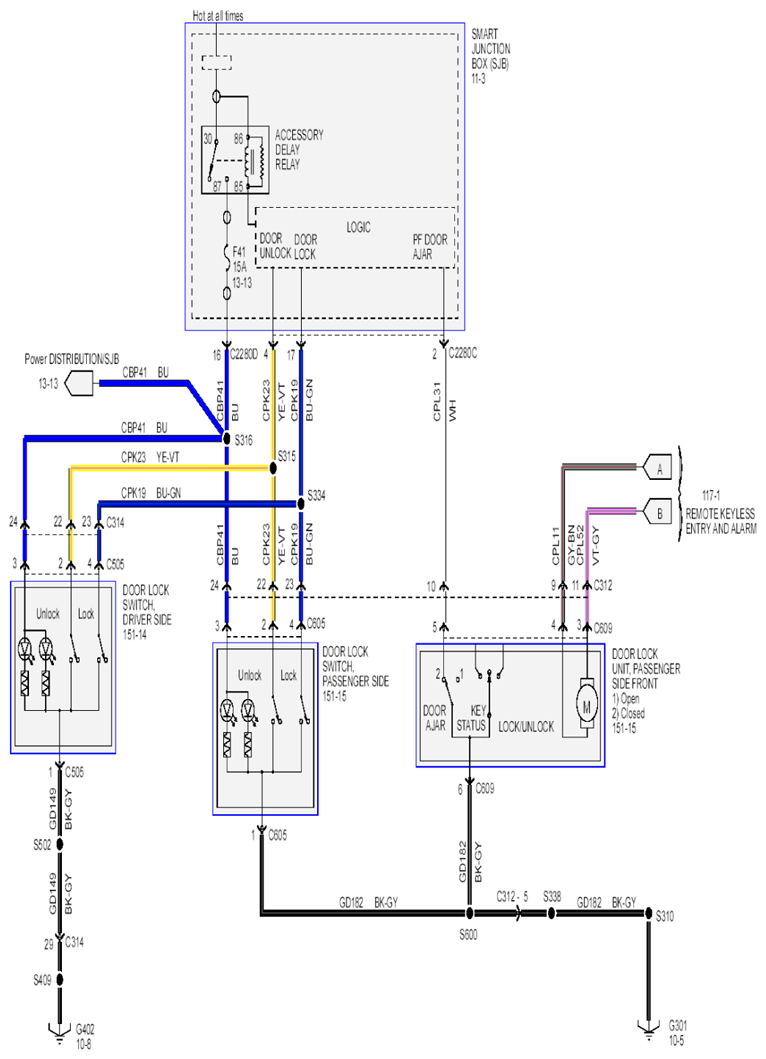

Fig 2: Keyless Entry And Alarm Circuit (2 Of 4)
G07855878Courtesy of FORD MOTOR CO.

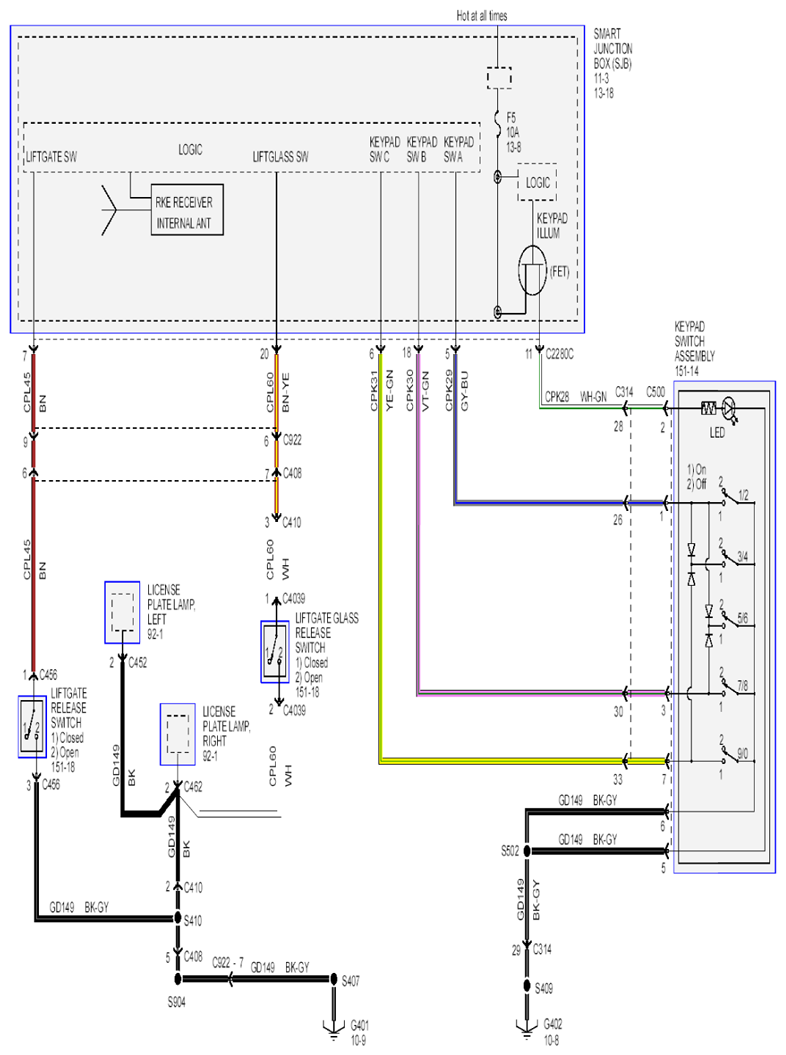

Fig 3: Keyless Entry And Alarm Circuit (3 Of 4)
G07855879Courtesy of FORD MOTOR CO.

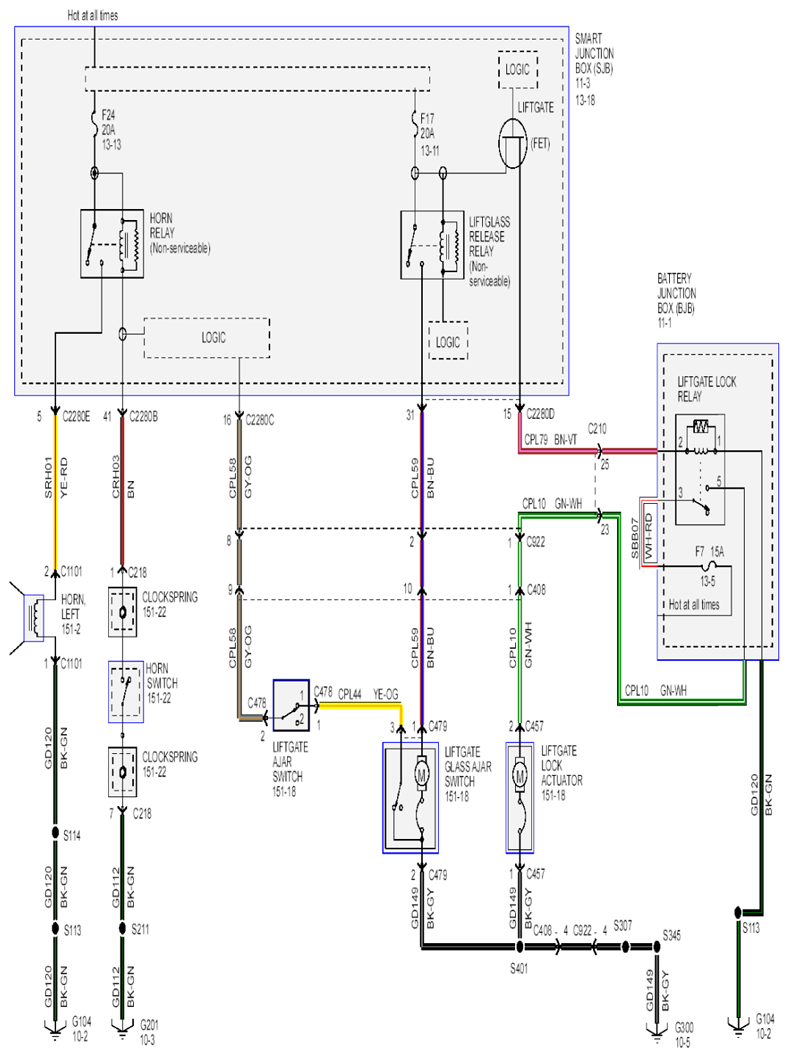

Fig 4: Keyless Entry And Alarm Circuit (4 Of 4)
G07855880Courtesy of FORD MOTOR CO.
