Power Windows
Power Windows

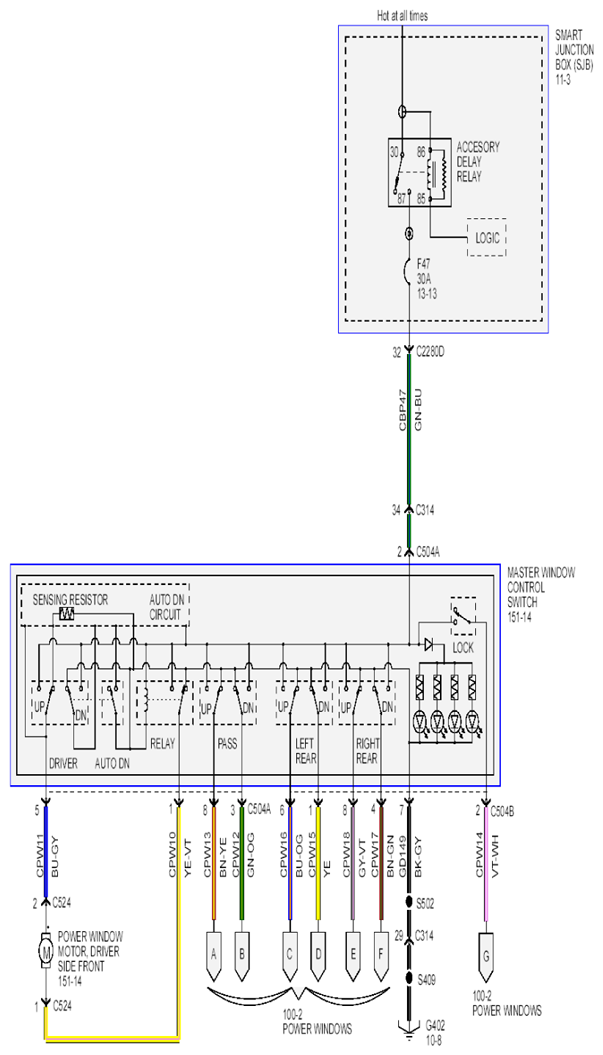

Fig 1: Power Windows Circuit (1 Of 2)
Courtesy of FORD MOTOR CO.

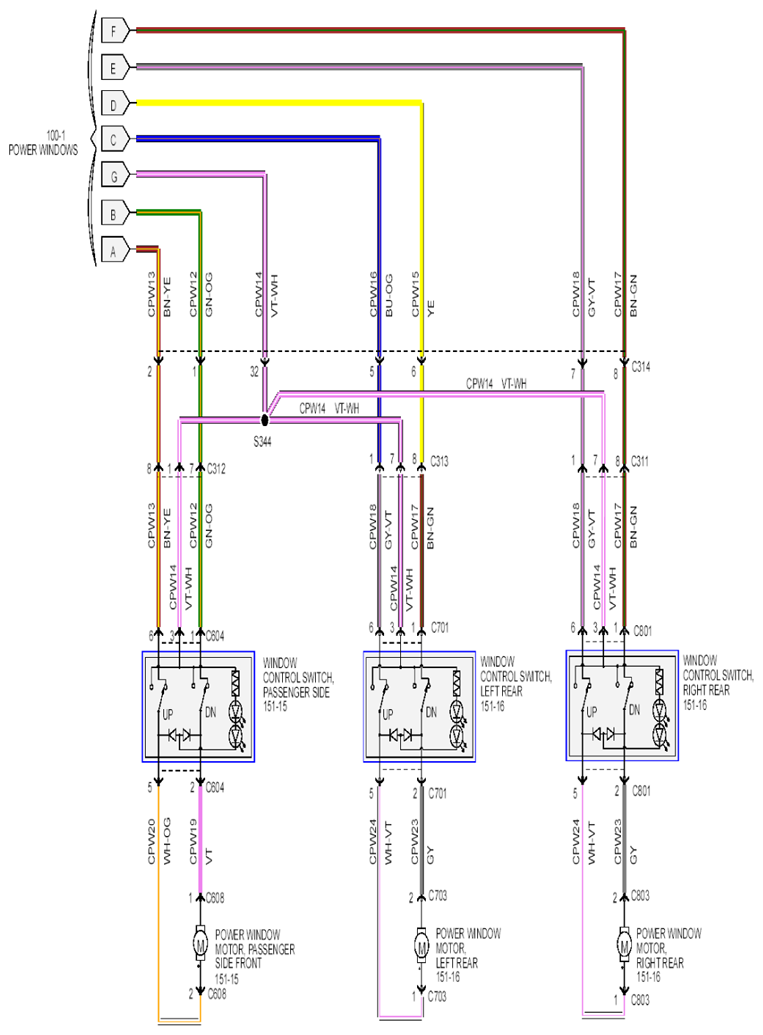

Fig 2: Power Windows Circuit (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
