With Microphone

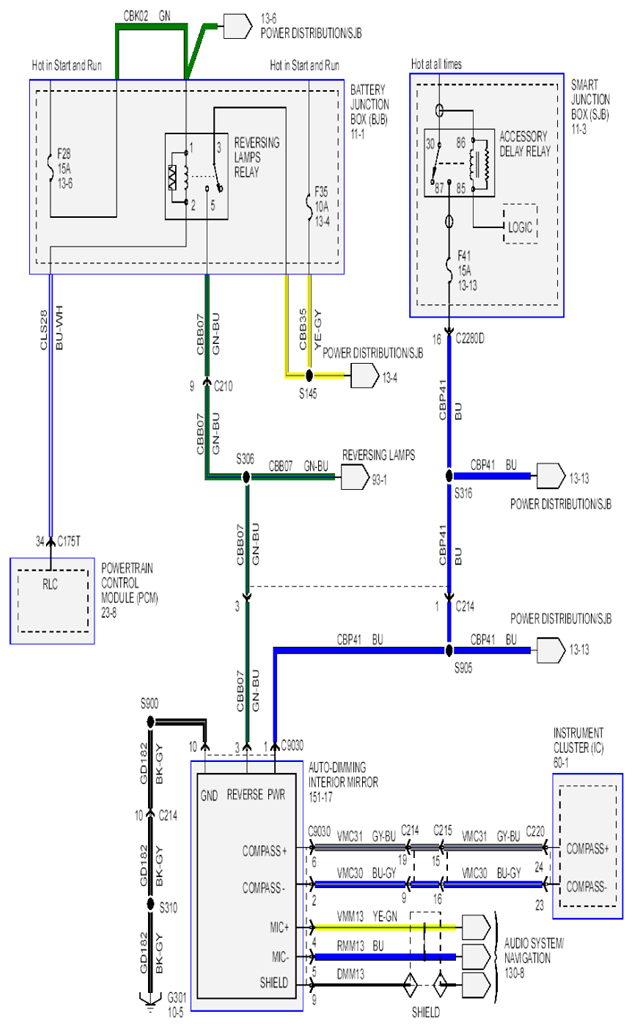

Fig 1: Power Mirrors - With Microphone Circuit (3 Of 4)

G07855885

Courtesy of FORD MOTOR CO.
