Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Power Mirrors
>>
Notes
Power Mirrors: Notes

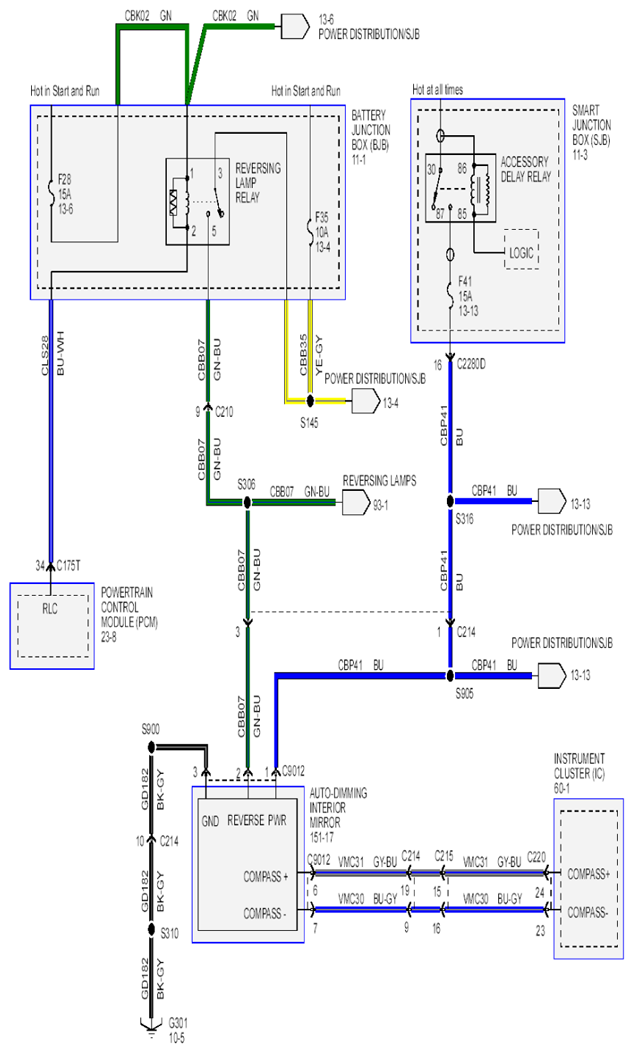

Fig 1: Power Mirrors Circuit (1 Of 4)
Courtesy of FORD MOTOR CO.

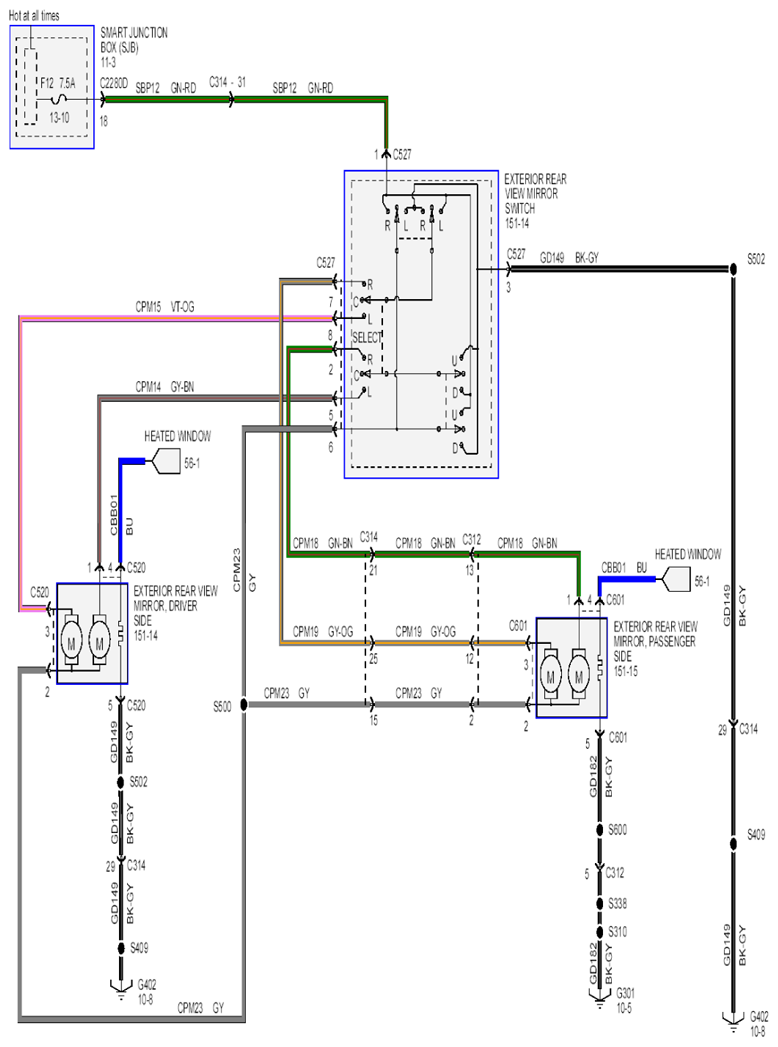

Fig 2: Power Mirrors Circuit (2 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
