F9, F10, F12, F14, F18

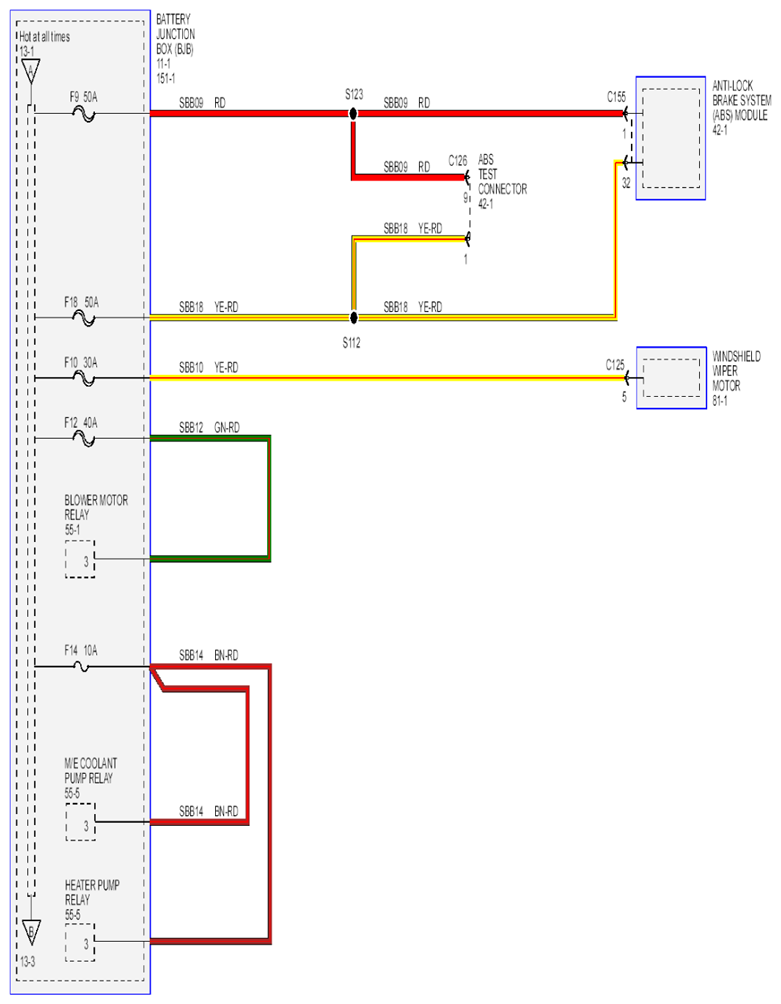

Fig 1: Power Distribution Schematic (2 Of 18)

G07855801

Courtesy of FORD MOTOR CO.
