Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Power Distribution
>>
F7, F24, F26, F27, F29
F7, F24, F26, F27, F29

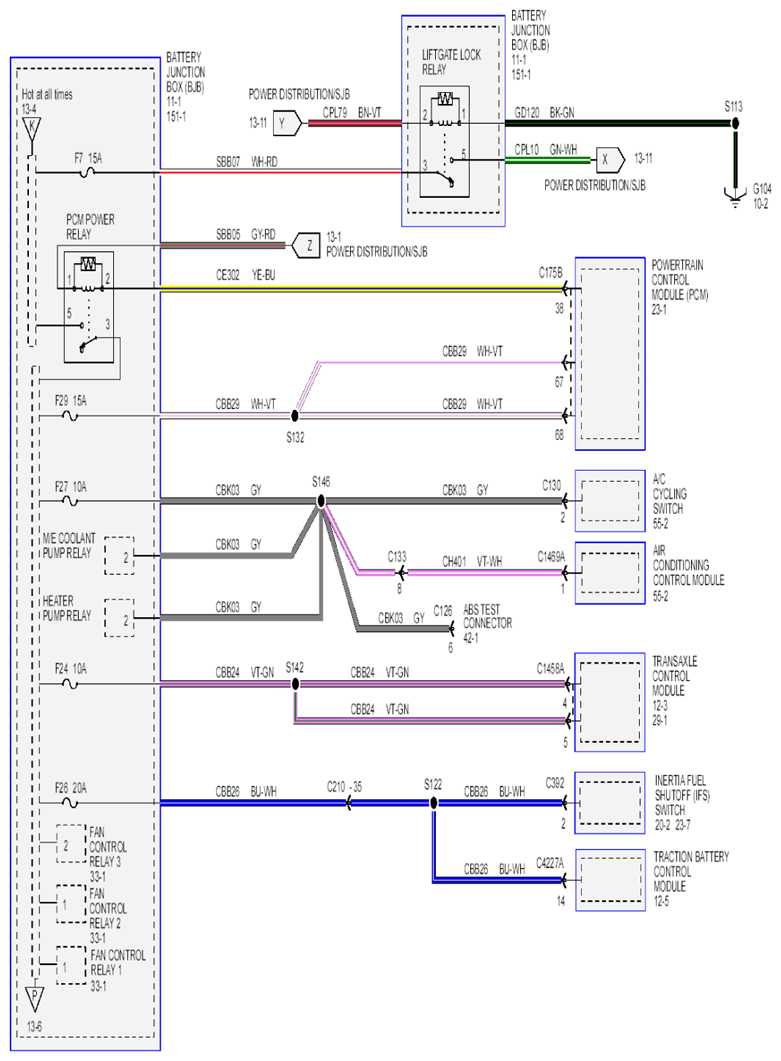

Fig 1: Power Distribution Schematic (5 Of 18)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
