F43, F45

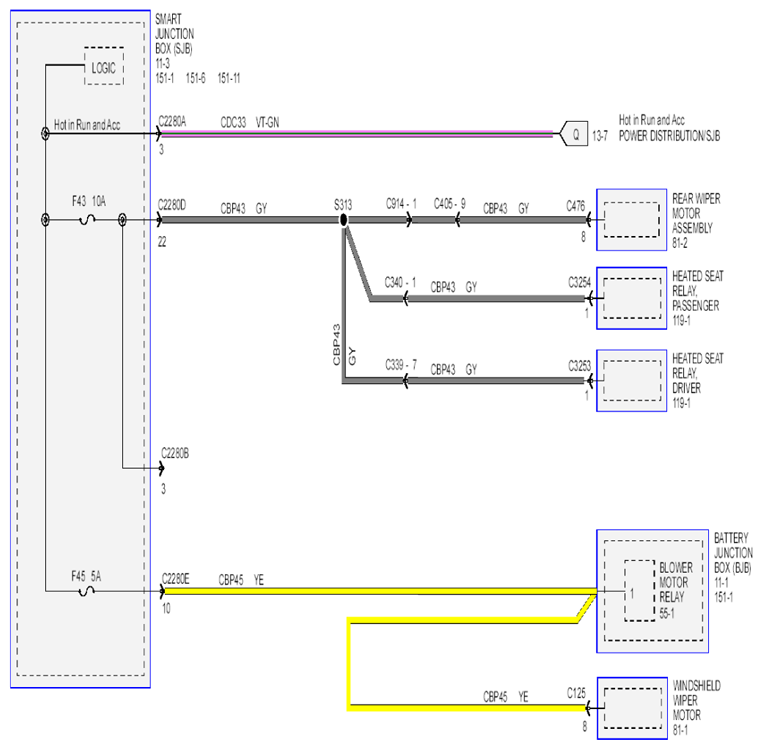

Fig 1: Power Distribution Schematic (16 Of 18)
G07855815Courtesy of FORD MOTOR CO.

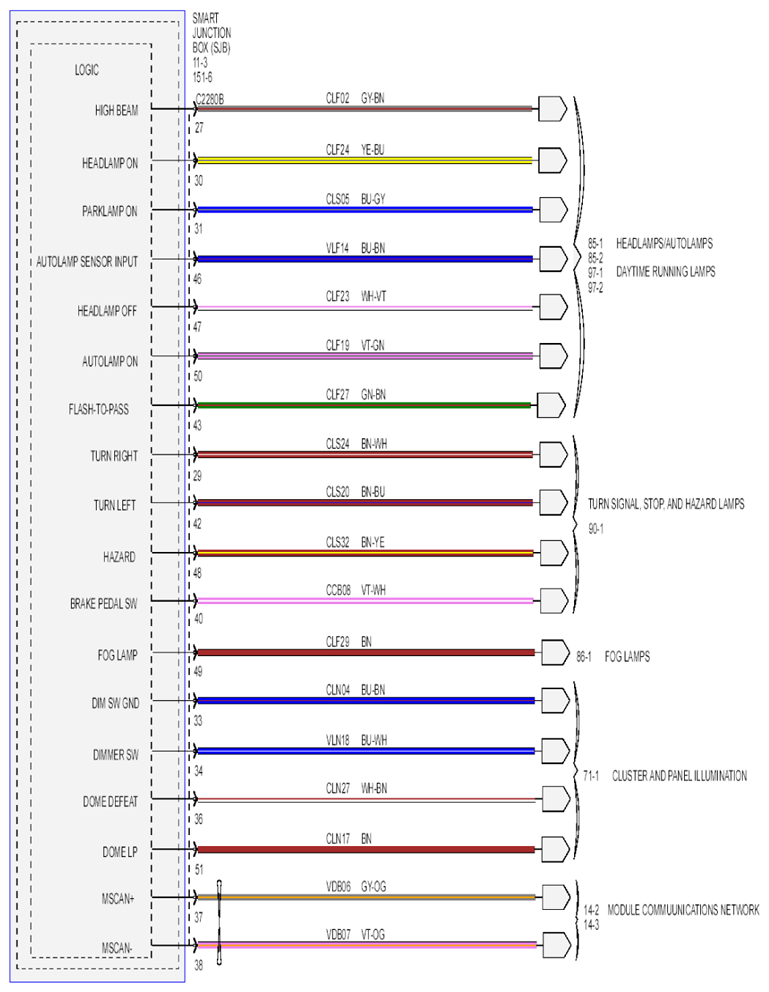

Fig 2: Power Distribution Schematic (17 Of 18)
G07855816Courtesy of FORD MOTOR CO.

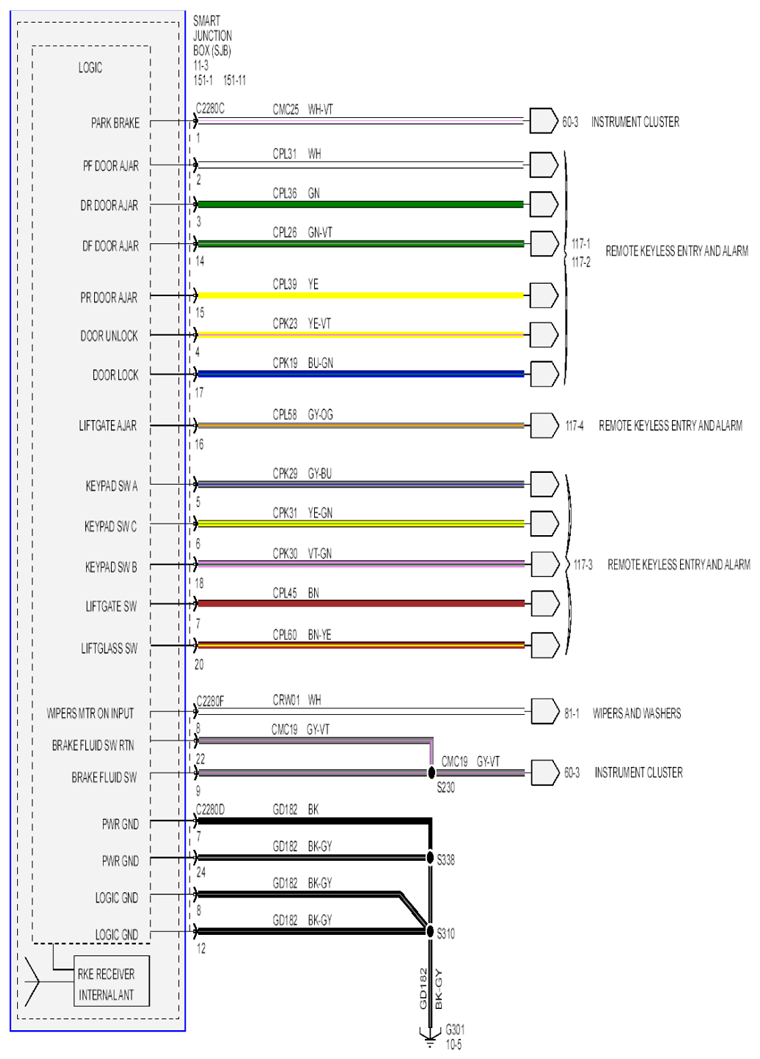

Fig 3: Power Distribution Schematic (18 Of 18)
G07855817Courtesy of FORD MOTOR CO.
