OEM Wiring Diagrams (Hybrid)
>>
Power Distribution
>>
F3, F4, F11, F12, F14, F15, F18
F3, F4, F11, F12, F14, F15, F18

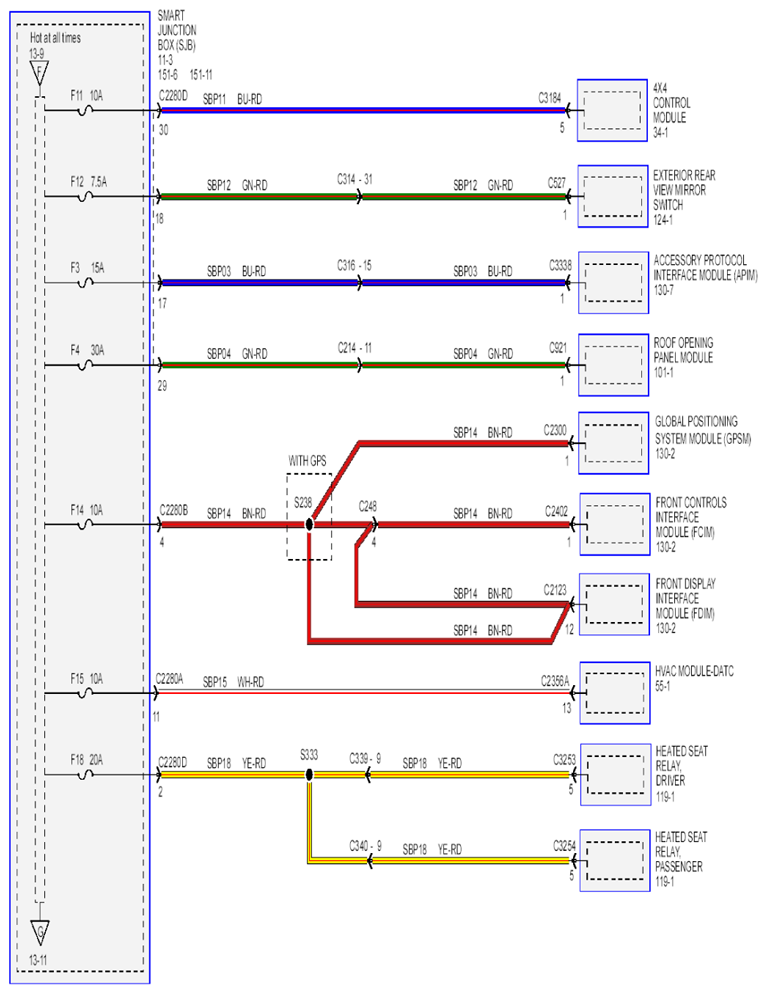

Fig 1: Power Distribution Schematic (10 Of 18)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
